Modular Watermakers

Very compact units based on split membranes.

Large choice of output range ( up to 500 lit/h)  to satisfy all needs.

3 control options available.

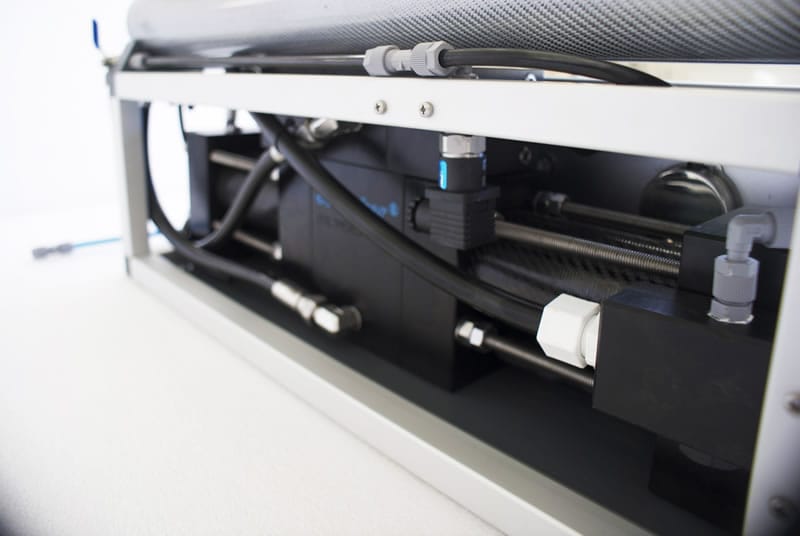

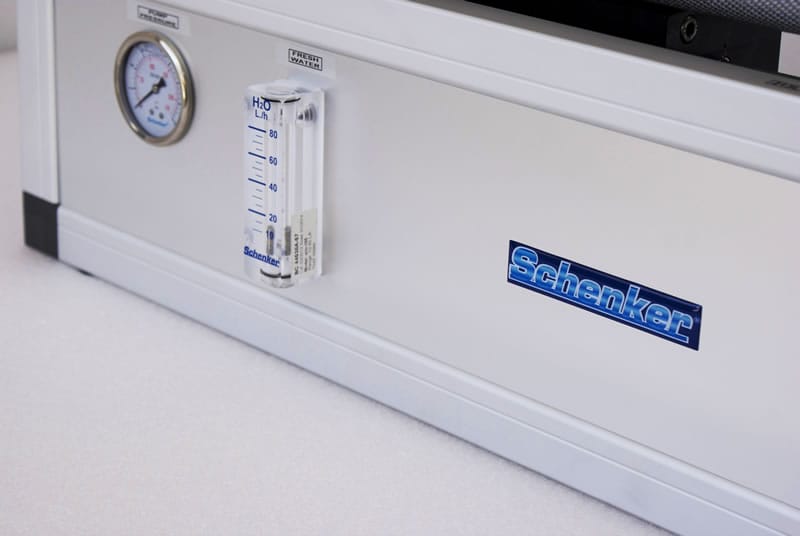

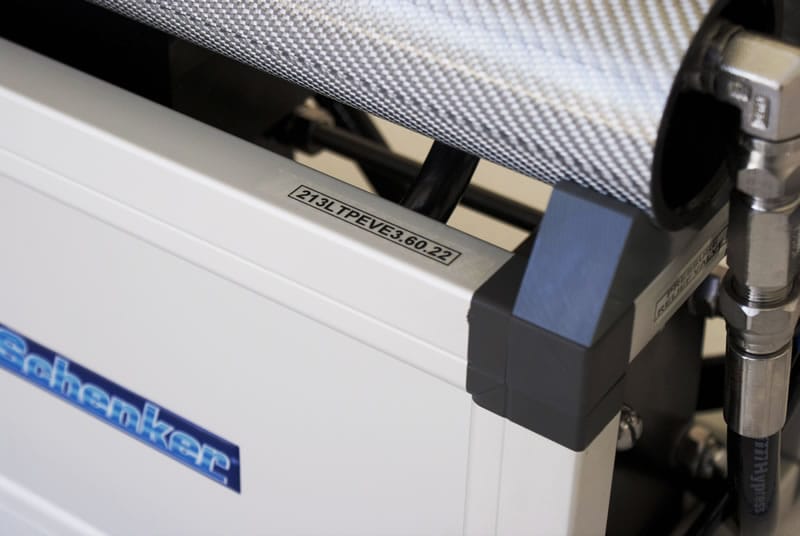

Modular 35

Modular 35

Modular 35 is the Schenker watermaker ideal for a crew of 1-4 people, in 30-40 feet sailboat or in 25-35 feet powerboat or catamaran. The capacity is 35 lit/h (9 Gal/h); consumption is just 110 watt. 12-24 VDC power supply.

Modular 35

Overview


  • Capacity: 35 lit/h | Gal/h 9
  • Power Supply: 12 / 24 VDC
  • Consumption: 100 watt
  • Weight: 31 Kg - 68,34 Lb
  • Membranes: n°2 2,5" x 21"

Ideal For

1/4
Persons
30/40 FEET
SAILBOAT
25/35 FEET
CATAMARAN
25/35 FEET
POWERBOAT

Useful Product Informations

Discover all features and configurations

  • Watermaker fitted with Energy Recovery System
  • Feed pump with filter
  • Active carbon filter with electrovalve
  • Net filter
  • Filters key
  • Non return valve
  • Fresh water hose (5 mt.)
  • Remote panel
  • Installation kit (assortment of fittings and screws)
  • Owner manual

Basic Version

  • Automatic pressure regulation
  • High pressure block
  • Low voltage block

Digital & Touch Version

  • Automatic pressure regulation
  • High pressure block
  • Low pressure block
  • No cycling block
  • Low voltage block

CHOOSE YOUR PANEL FROM BASIC, DIGITAL AND TOUCH VERSION

BASIC PANEL FEATURES
  • Remote start/stop
  • Watermaker flushing
  • Timer
  • Dimensions: 100x66mm
New Basic Panel

New Basic Panel

DIGITAL PANEL FEATURES
  • Remote Start/Stop
  • Timer
  • Automatic flushing
  • Intensive flushing
  • Periodic flushing
  • Hours counter
  • Automatic start up
  • Assisted maintenance
  • Salinity monitoring (optional)
  • Raymarine compatible
  • Dimensions: 135x115mm
New Digital Panel

New Digital Panel

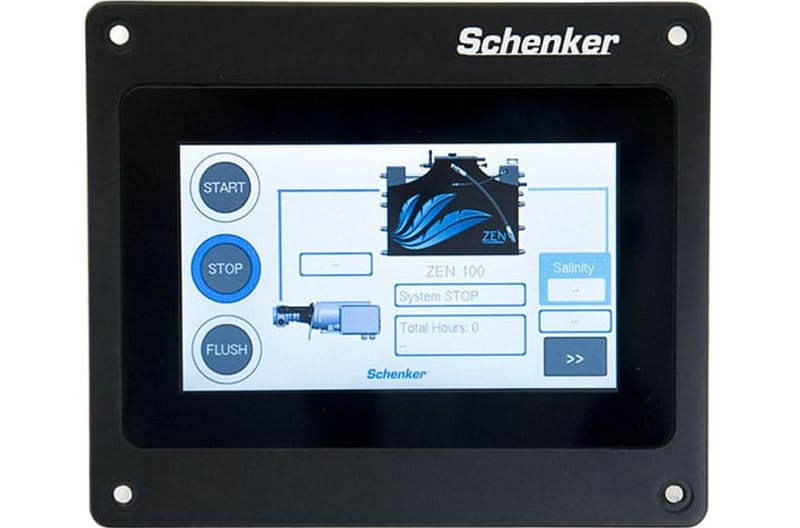

TOUCH PANEL FEATURES
  • Remote Start/Stop
  • Timer
  • Automatic flushing
  • Intensive flushing
  • Periodic flushing
  • Hours counter
  • Automatic start up
  • Assisted maintenance
  • Salinity monitoring (optional)
  • Flow meter (optional)
  • Pressure meter (optional)
  • Dimensions: 135x116mm
New Touch Panel

New Touch Panel

Choose a pump from the list below based on the space on the boat and the models available for the selected watermaker:

Drawings

30-35 l/h Pump

30-35 l/h Pump



30-35 l/h Pump with external filter

30-35 l/h Pump with external filter

Drawings

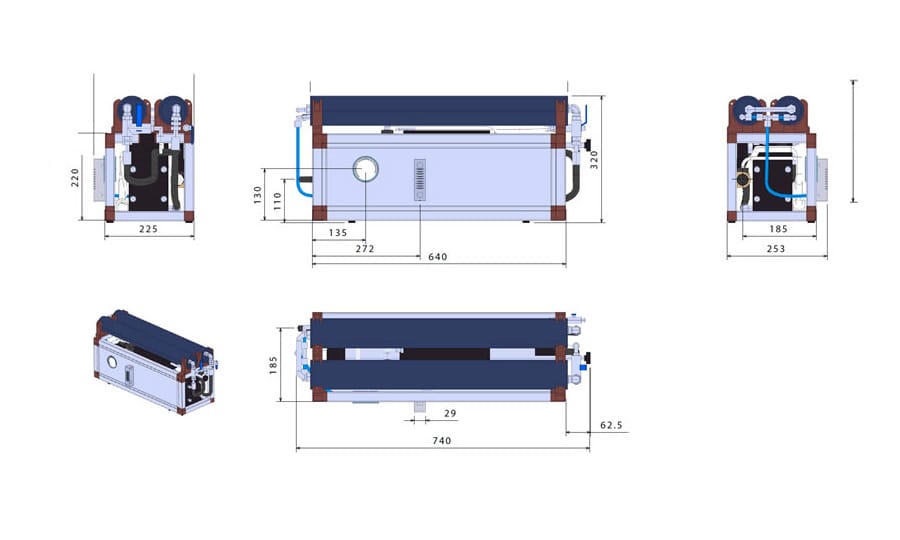

Modular 35 drawings

Modular 35 drawings

Typical Installation

Modular Typical InstallationModular Typical Installation

Modular 35 Typical Installation

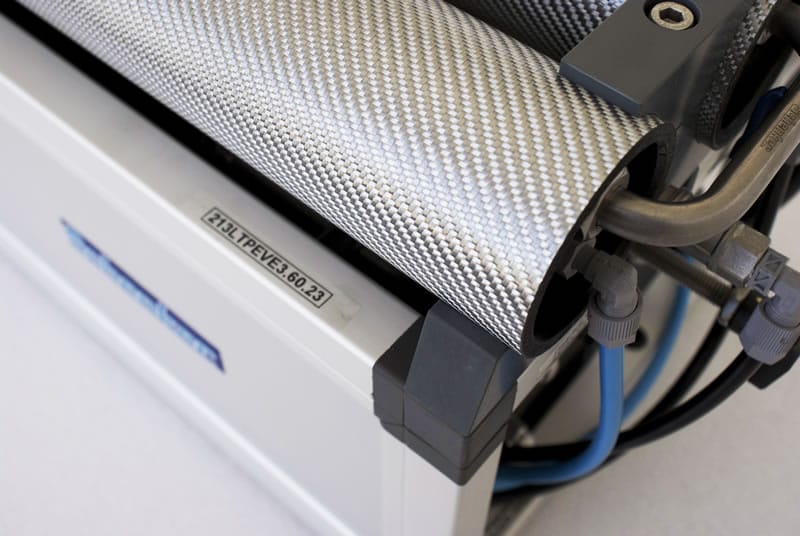

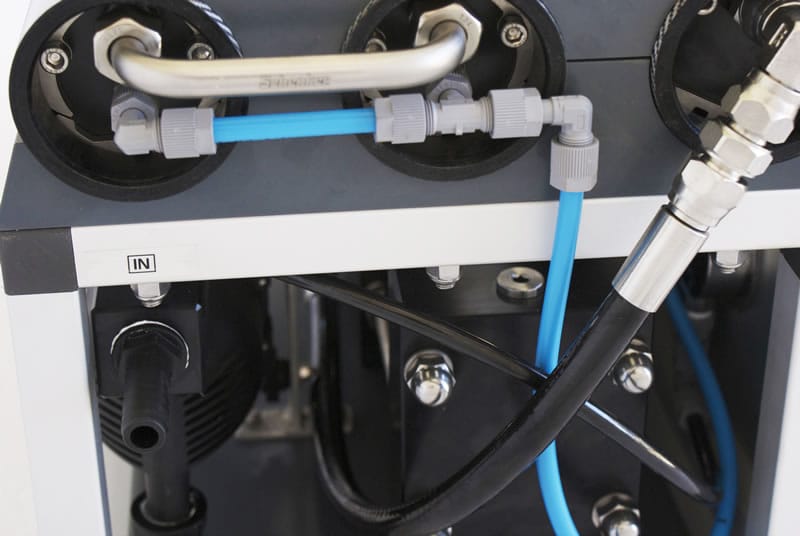

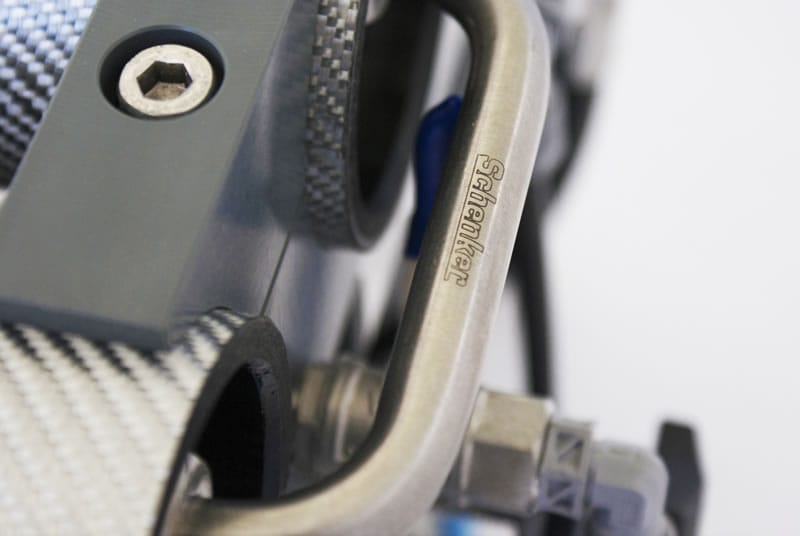

Modular 60

Modular 60

Modular 60 is the watermaker ideal for a crew of 4-6 people, in 35-45 feet sailboat or in 30-40 feet powerboat or catamaran. The capacity is 60 lit/h (15.8 Gal/h); consumption is 240 watt. 12-24 VDC or AC power supply.

Modular 60

Overview


  • Capacity: 60 lit/h | Gal/h 15.8
  • Power Supply: 12 / 24 VDC or AC
  • Consumption: 240 watt
  • Weight: 38 Kg - 83,78 Lb
  • Membranes: n°3 2,5" x 21"

Ideal For

4/6
Persons
35/45 FEET
SAILBOAT
30/40 FEET
CATAMARAN
30/40 FEET
POWERBOAT

Useful Product Informations

Discover all features and configurations

  • Watermaker fitted with Energy Recovery System
  • Feed pump with filter
  • Active carbon filter with electrovalve
  • Net filter
  • Filters key
  • Non return valve
  • Fresh water hose (5 mt.)
  • Remote panel
  • Installation kit (assortment of fittings and screws)
  • Owner manual

Basic Version

  • Automatic pressure regulation
  • High pressure block
  • Low voltage block

Digital & Touch Version

  • Automatic pressure regulation
  • High pressure block
  • Low pressure block
  • No cycling block
  • Low voltage block

CHOOSE YOUR PANEL FROM BASIC, DIGITAL AND TOUCH VERSION

BASIC PANEL FEATURES
  • Remote start/stop
  • Watermaker flushing
  • Timer
  • Dimensions: 100x66mm
New Basic Panel

New Basic Panel

DIGITAL PANEL FEATURES
  • Remote Start/Stop
  • Selection Half Power
  • Timer
  • Automatic flushing
  • Intensive flushing
  • Periodic flushing
  • Hours counter
  • Automatic start up
  • Assisted maintenance
  • Salinity monitoring (optional)
  • Raymarine compatible
  • Dimensions: 135x115mm
New Digital Panel

New Digital Panel

TOUCH PANEL FEATURES
  • Remote Start/Stop
  • Selection Half Power
  • Timer
  • Automatic flushing
  • Intensive flushing
  • Periodic flushing
  • Hours counter
  • Automatic start up
  • Assisted maintenance
  • Salinity monitoring (optional)
  • Flow meter (optional)
  • Pressure meter (optional)
  • Dimensions: 135x116mm
New Touch Panel

New Touch Panel

Choose a pump from the list below based on the space on the boat and the models available for the selected watermaker:

Drawings

60 l/h Pump

60 l/h Pump

50/60 Pump

50-60 l/h Pump with external filter

Drawings

Modular 60 drawings

Modular 60 drawings

Typical Installation

Modular Typical InstallationModular Typical Installation

Modular 60 Typical Installation

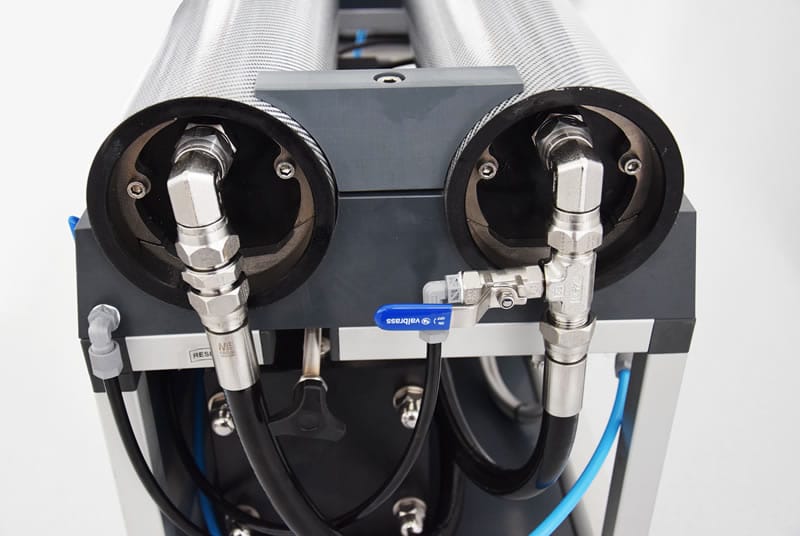

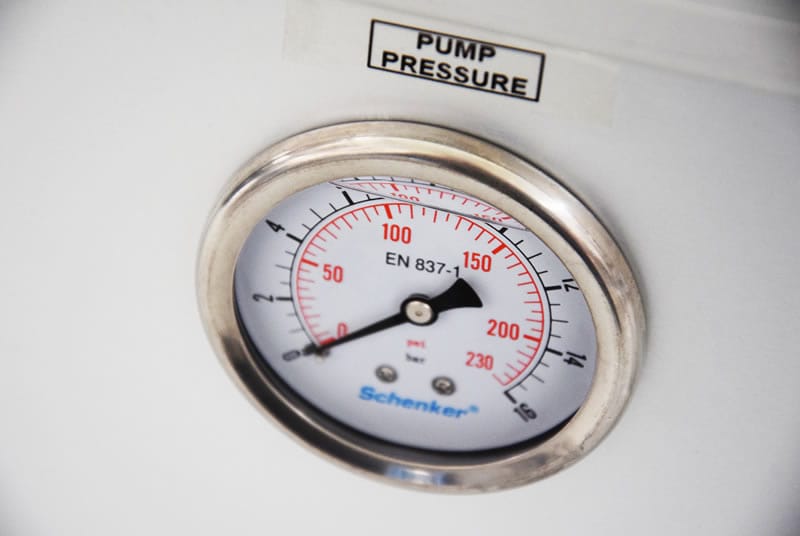

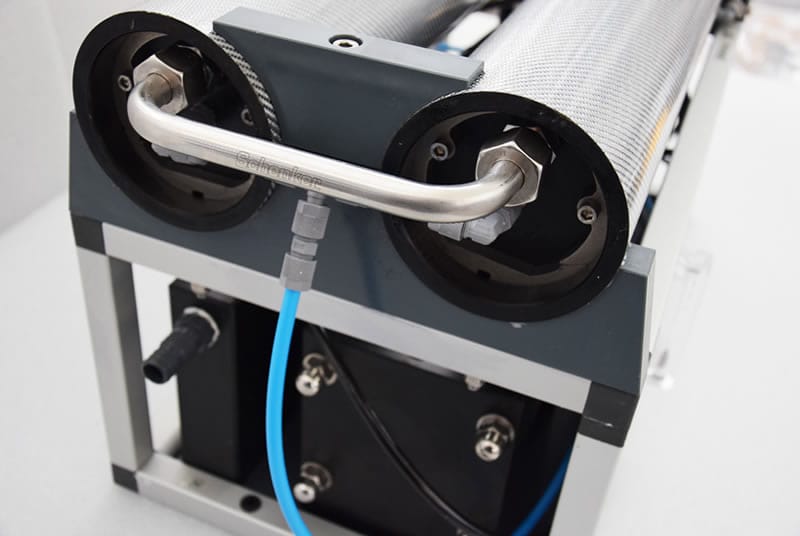

Modular 100

Modular 100

Modular 100 is the watermaker ideal for a crew of 6-8 people, in 45-55 feet sailboat or in 35-45 feet powerboat or catamaran. The capacity is 100 lit/h (26.4 Gal/h); consumption is 400 watt. 12-24 VDC or AC power supply.

Modular 100

Overview


  • Capacity: 100 lit/h | Gal/h 26.4
  • Power Supply: 12 / 24 VDC or AC
  • Consumption: 400 watt
  • Weight: 58 Kg - 127,87 Lb
  • Membranes: n°2 4" x 21"

Ideal For

6/8
Persons
45/55 FEET
SAILBOAT
35/45 FEET
CATAMARAN
35/45 FEET
POWERBOAT

Useful Product Informations

Discover all features and configurations

  • Watermaker fitted with Energy Recovery System
  • Feed pump with filter
  • Active carbon filter with electrovalve
  • Net filter
  • Filters key
  • Non return valve
  • Fresh water hose (5 mt.)
  • Remote panel
  • Installation kit (assortment of fittings and screws)
  • Owner manual

Basic Version

  • Automatic pressure regulation
  • High pressure block
  • Low voltage block

Digital & Touch Version

  • Automatic pressure regulation
  • High pressure block
  • Low pressure block
  • No cycling block
  • Low voltage block

CHOOSE YOUR PANEL FROM BASIC, DIGITAL AND TOUCH VERSION

BASIC PANEL FEATURES
  • Remote start/stop
  • Watermaker flushing
  • Timer
  • Dimensions: 100x66mm
New Basic Panel

New Basic Panel

DIGITAL PANEL FEATURES
  • Remote Start/Stop
  • Timer
  • Automatic flushing
  • Intensive flushing
  • Periodic flushing
  • Hours counter
  • Automatic start up
  • Assisted maintenance
  • Salinity monitoring (optional)
  • Raymarine compatible
  • Dimensions: 135x115mm
New Digital Panel

New Digital Panel

TOUCH PANEL FEATURES
  • Remote Start/Stop
  • Timer
  • Automatic flushing
  • Intensive flushing
  • Periodic flushing
  • Hours counter
  • Automatic start up
  • Assisted maintenance
  • Salinity monitoring (optional)
  • Flow meter (optional)
  • Pressure meter (optional)
  • Dimensions: 135x116mm
New Touch Panel

New Touch Panel

Drawings

80/100/150 Pump

80-100-150 l/h Pump

Drawings

Modular 100 drawings

Modular 100 drawings

Typical Installation

Modular Typical Installation

Modular 100 Typical Installation

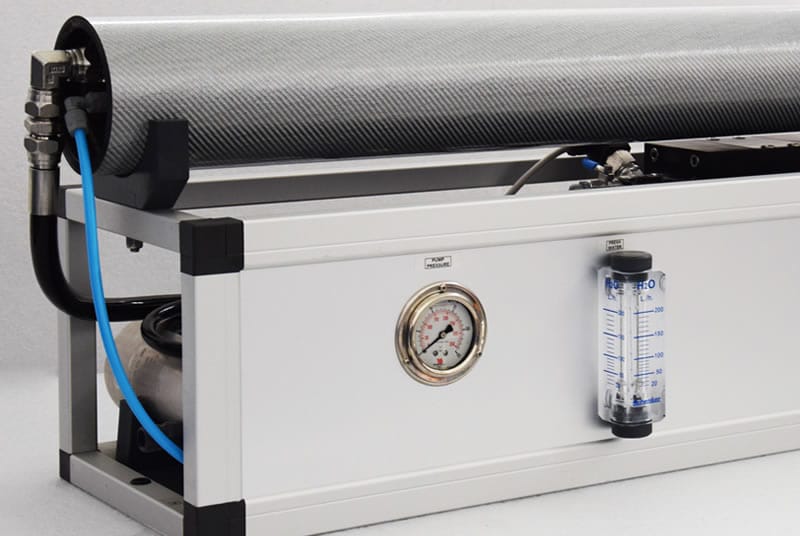

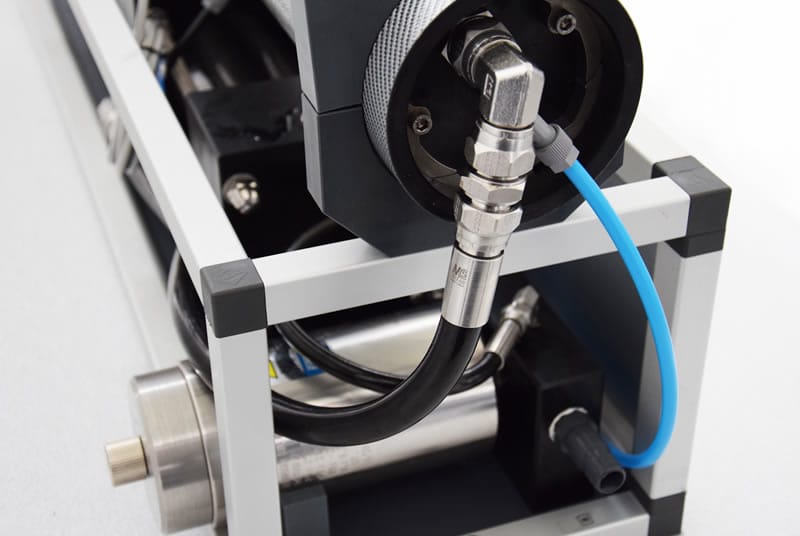

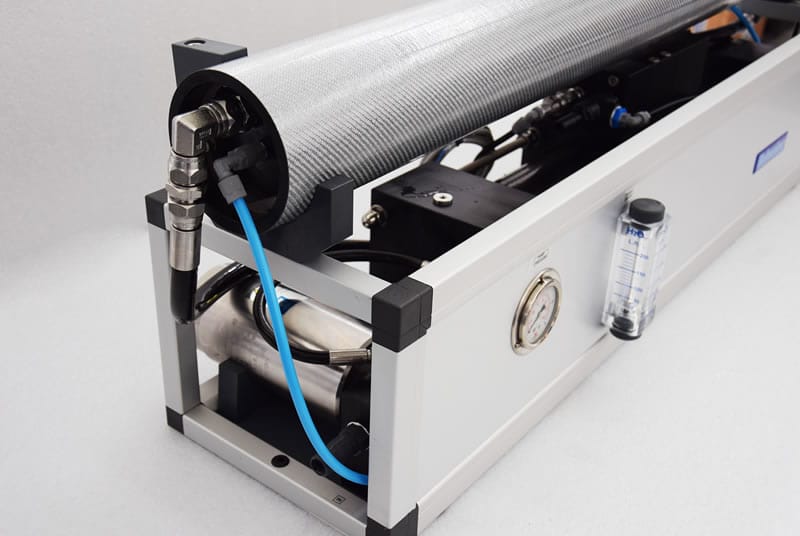

Modular 150

Modular 150

Modular 150 is the watermaker ideal for a crew of 8-10 people, in 50-60 feet sailboat or in 40-50 feet powerboat or catamaran. The capacity is 150 lit/h (39.6 Gal/h); consumption is 600 watt. 24 VDC or AC power supply.

Modular 150

Overview


  • Capacity: 150 lit/h | Gal/h 39.6
  • Power Supply: 24 VDC or AC
  • Consumption: 600 watt
  • Weight: 69 Kg - 152,12 Lb
  • Membranes: n°1 4" x 40"

Ideal For

8/10
Persons
50/60 FEET
SAILBOAT
40/50 FEET
CATAMARAN
40/50 FEET
POWERBOAT

Useful Product Informations

Discover all features and configurations

  • Watermaker fitted with Energy Recovery System
  • Feed pump with filter
  • Active carbon filter
  • Net filter
  • Filters key
  • Non return valve
  • Fresh water hose (5 mt.)
  • Electronic box
  • Remote panel
  • Remote panel extension cable (10 mt)
  • Installation kit (assortment of fittings and screws)
  • Owner manual

  • Automatic pressure regulation
  • Low pressure block
  • High pressure block
  • No cycling block
  • Low voltage block

CHOOSE YOUR PANEL FROM DIGITAL AND TOUCH VERSION

DIGITAL PANEL FEATURES
  • Remote Start/Stop
  • Timer
  • Automatic flushing
  • Intensive flushing
  • Periodic flushing
  • Hours counter
  • Automatic start up
  • Assisted maintenance
  • Salinity monitoring (optional)
  • Raymarine compatible
  • Dimensions: 135x115mm
New Digital Panel

New Digital Panel

TOUCH PANEL FEATURES
  • Remote Start/Stop
  • Timer
  • Automatic flushing
  • Intensive flushing
  • Periodic flushing
  • Hours counter
  • Automatic start up
  • Assisted maintenance
  • Salinity monitoring (optional)
  • Flow meter (optional)
  • Pressure meter (optional)
  • Dimensions: 135x116mm
New Touch Panel

New Touch Panel

Drawings

150 Pump

150 l/h Pump

Drawings

Modular 150 drawings

Modular 150 drawings

Typical Installation

Modular Typical Installation

Modular 150 Typical Installation

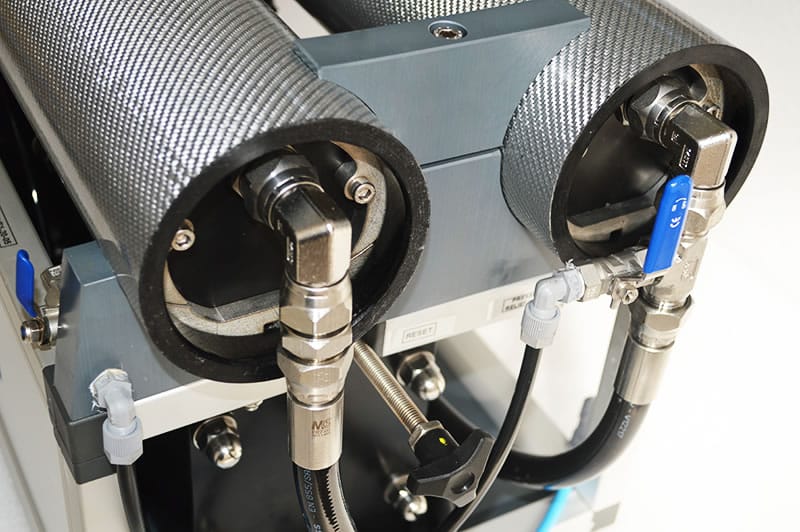

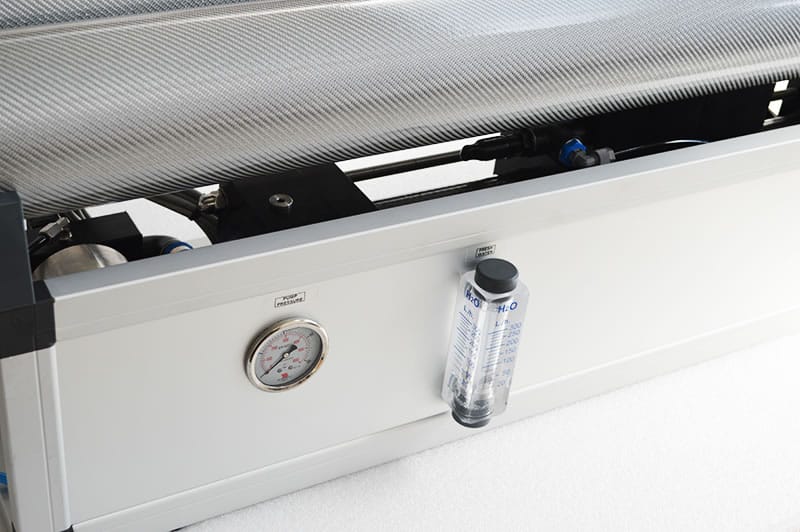

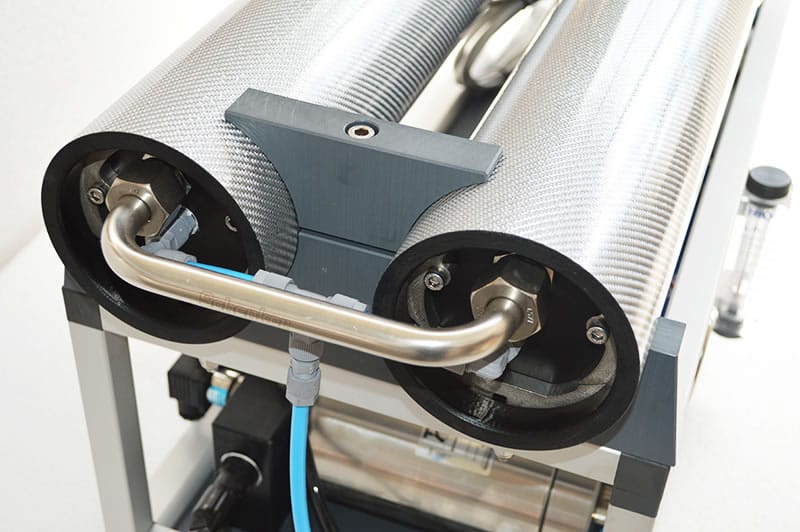

Modular 230

Modular 230

Modular 230 is the watermaker ideal for a crew of 10-12 people, in 55-60 feet sailboat or in 50-60 feet powerboat or catamaran. The capacity is 230 lit/h (61 Gal/h); consumption is 1.5 kWatt. AC single or triphase power supply.

Modular 230

Overview


  • Capacity: 230 lit/h | Gal/h 61
  • Power Supply: AC single or three phase
  • Consumption: 1,5 kWatt
  • Weight: 95 Kg - 209,44 Lb
  • Membranes: n°2 4" x 40"

Ideal For

10/12
Persons
55/65 FEET
SAILBOAT
50/60 FEET
CATAMARAN
50/60 FEET
POWERBOAT

Useful Product Informations

Discover all features and configurations

  • Watermaker fitted with Energy Recovery System
  • Feed pump with filter
  • Active carbon filter
  • Net filter
  • Filters key
  • Non return valve
  • Fresh water hose (5 mt.)
  • Electronic box
  • Remote panel
  • Remote panel extension cable (10 mt)
  • Installation kit (assortment of fittings and screws)
  • Owner manual

  • Automatic pressure regulation
  • Low pressure block
  • High pressure block
  • No cycling block
  • Low voltage block

CHOOSE YOUR PANEL FROM DIGITAL AND TOUCH VERSION

DIGITAL PANEL FEATURES
  • Remote Start/Stop
  • Timer
  • Automatic flushing
  • Intensive flushing
  • Periodic flushing
  • Hours counter
  • Automatic start up
  • Assisted maintenance
  • Salinity monitoring (optional)
  • Raymarine compatible
  • Dimensions: 135x115mm
New Digital Panel

New Digital Panel

TOUCH PANEL FEATURES
  • Remote Start/Stop
  • Timer
  • Automatic flushing
  • Intensive flushing
  • Periodic flushing
  • Hours counter
  • Automatic start up
  • Assisted maintenance
  • Salinity monitoring (optional)
  • Flow meter (optional)
  • Pressure meter (optional)
  • Dimensions: 135x116mm
New Touch Panel

New Touch Panel

Drawings

230 l/h Pump

230 l/h Pump

Drawings

Modular 230 drawings

Modular 230 drawings

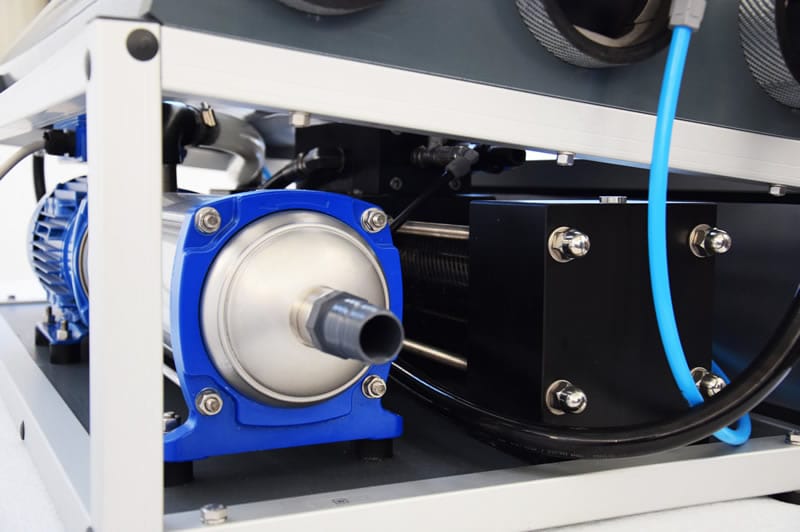

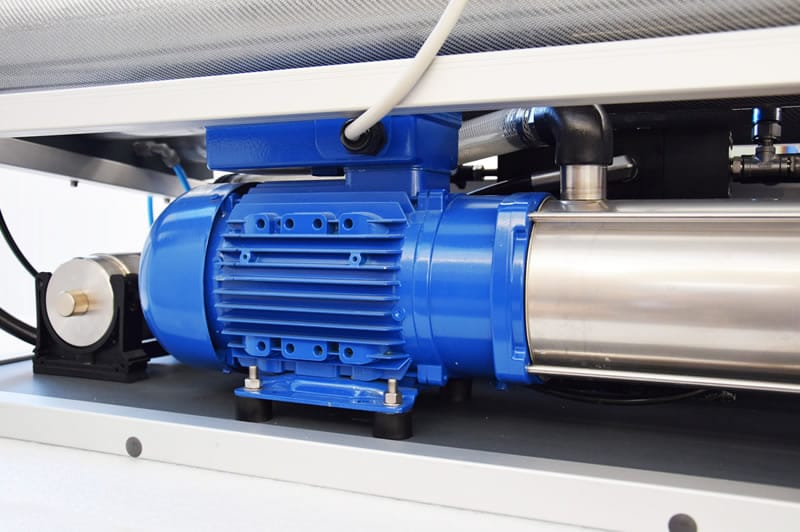

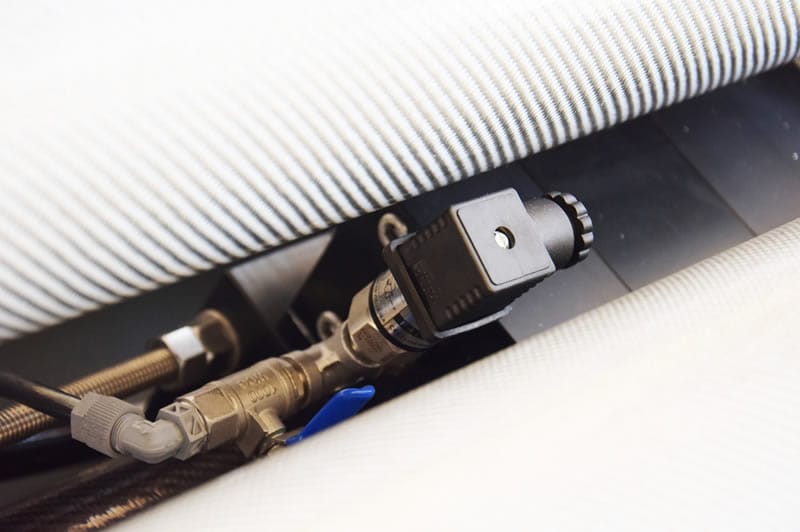

Modular 300

Modular 300

Modular 300 is the Schenker ideal for a crew of 12-400 people, in 60-70 feet sailboat or in 55-65 feet powerboat or catamaran. The capacity is 300 lit/h (79 Gal/h); consumption is 2.5 kWatt. AC single or triphase power supply.

Modular 300

Overview


  • Capacity: 300 lit/h | Gal/h 79
  • Power Supply: AC single or three phase
  • Consumption: 2,5 kWatt
  • Weight: 145 Kg - 319,67 Lb
  • Membranes: n°3 4" x 40"

Ideal For

12/14
Persons
60/70 FEET
SAILBOAT
55/65 FEET
CATAMARAN
55/65 FEET
POWERBOAT

Useful Product Informations

Discover all features and configurations

  • Watermaker fitted with Energy Recovery System
  • Feed pump with filter
  • Active carbon filter
  • Net filter
  • Filters key
  • Non return valve
  • Fresh water hose (5 mt.)
  • Electronic box
  • Remote panel
  • Remote panel extension cable (10 mt)
  • Installation kit (assortment of fittings and screws)
  • Owner manual

  • Automatic pressure regulation
  • Low pressure block
  • High pressure block
  • No cycling block
  • Low voltage block

CHOOSE YOUR PANEL FROM DIGITAL AND TOUCH VERSION

DIGITAL PANEL FEATURES
  • Remote Start/Stop
  • Timer
  • Automatic flushing
  • Intensive flushing
  • Periodic flushing
  • Hours counter
  • Automatic start up
  • Assisted maintenance
  • Salinity monitoring (optional)
  • Raymarine compatible
  • Dimensions: 135x115mm
New Digital Panel

New Digital Panel

TOUCH PANEL FEATURES
  • Remote Start/Stop
  • Timer
  • Automatic flushing
  • Intensive flushing
  • Periodic flushing
  • Hours counter
  • Automatic start up
  • Assisted maintenance
  • Salinity monitoring (optional)
  • Flow meter (optional)
  • Pressure meter (optional)
  • Dimensions: 135x116mm
New Touch Panel

New Touch Panel

Drawings

230-300 l/h Pre Pump

230-300 l/h Pre Pump

Drawings

Modular 300 drawings

Modular 300 drawings

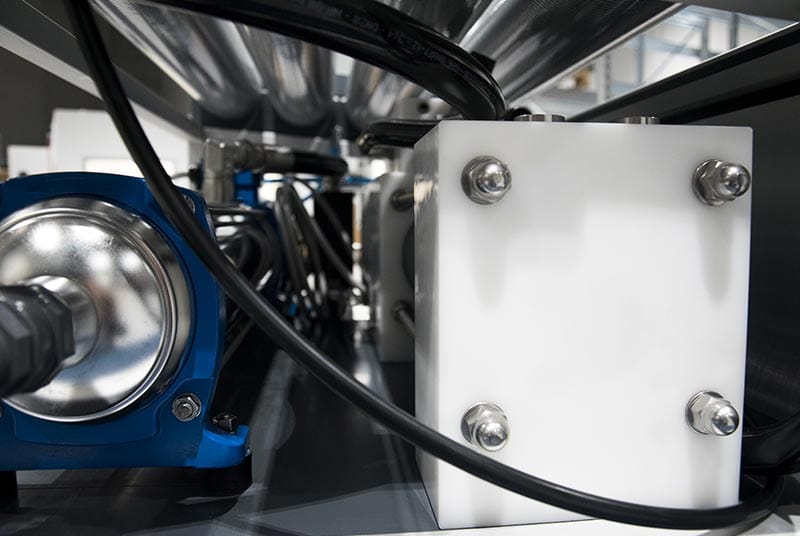

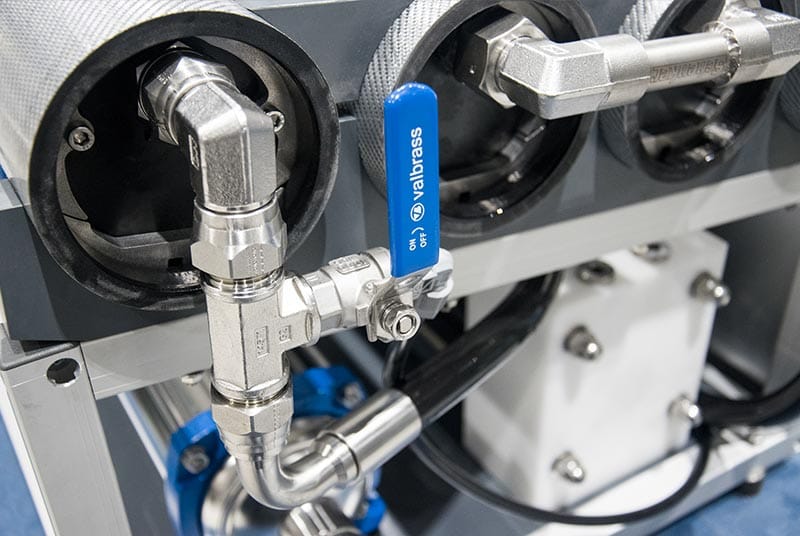

Modular 500

Modular 500

Modular 500 is the watermaker ideal for a crew of 14-20 people, in 70-100 feet sailboat or in 65-80 feet powerboat or catamaran. The capacity is 500 lit/h (132 Gal/h); consumption is 3.5 kWatt. Triphase power supply.

Modular 500

Overview


  • Capacity: 500 lit/h | Gal/h 132
  • Power Supply: AC three phase
  • Consumption: 3,5 kWatt
  • Weight: 180 Kg - 396,83 Lb

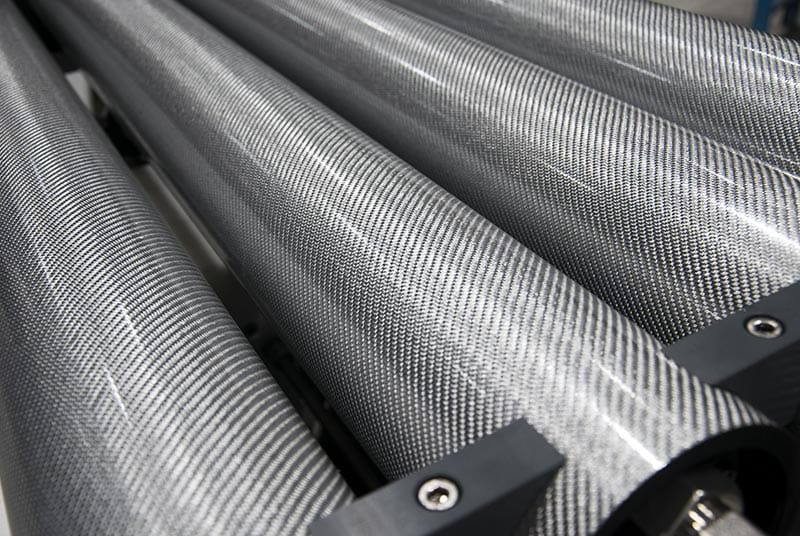

  • Membranes: n°4 4" x 40"

Ideal For

14/20
Persons
70/100 FEET
SAILBOAT
65/80 FEET
CATAMARAN
65/80 FEET
POWERBOAT

Useful Product Informations

Discover all features and configurations

  • Watermaker fitted with Energy Recovery System
  • Feed pump with filter
  • Active carbon filter
  • Net filter
  • Filters key
  • Non return valve
  • Fresh water hose (5 mt.)
  • Electronic box
  • Remote panel
  • Remote panel extension cable (10 mt)
  • Installation kit (assortment of fittings and screws)
  • Owner manual

  • Automatic pressure regulation
  • Low pressure block
  • High pressure block
  • No cycling block
  • Low voltage block

CHOOSE YOUR PANEL FROM DIGITAL AND TOUCH VERSION

DIGITAL PANEL FEATURES
  • Remote Start/Stop
  • Timer
  • Automatic flushing
  • Intensive flushing
  • Periodic flushing
  • Hours counter
  • Automatic start up
  • Assisted maintenance
  • Salinity monitoring (optional)
  • Raymarine compatible
  • Dimensions: 135x115mm
New Digital Panel

New Digital Panel

TOUCH PANEL FEATURES
  • Remote Start/Stop
  • Timer
  • Automatic flushing
  • Intensive flushing
  • Periodic flushing
  • Hours counter
  • Automatic start up
  • Assisted maintenance
  • Salinity monitoring (optional)
  • Flow meter (optional)
  • Pressure meter (optional)
  • Dimensions: 135x116mm
New Touch Panel

New Touch Panel

Drawings

230-300 l/h Pre Pump

230-300 l/h Pre Pump

Drawings

Modular 500 drawings

Modular 500 drawings

Send us a message








    Main Office

    Via Ferrante Imparato 499/501
    Condominio Genesis
    80146 Naples | Italy

    Email

    info@schenker.it
