Qube
Watermakers

QUBE: super-compact watermakers with a contemporary and essential design. QUBE is ideal for installations where available space is more suitable for a super-compact, “square” watermaker.

The QUBE features a state-of-the-art energy recovery system that achieves extremely high efficiency, minimal power consumption, and direct battery power.

The QUBE uses extremely quiet and reliable brushless electric motors. A sophisticated feedback control automatically adjusts the engine speed based on external parameters, maintaining constant the operating pressure and optimizing the final rinse operations.

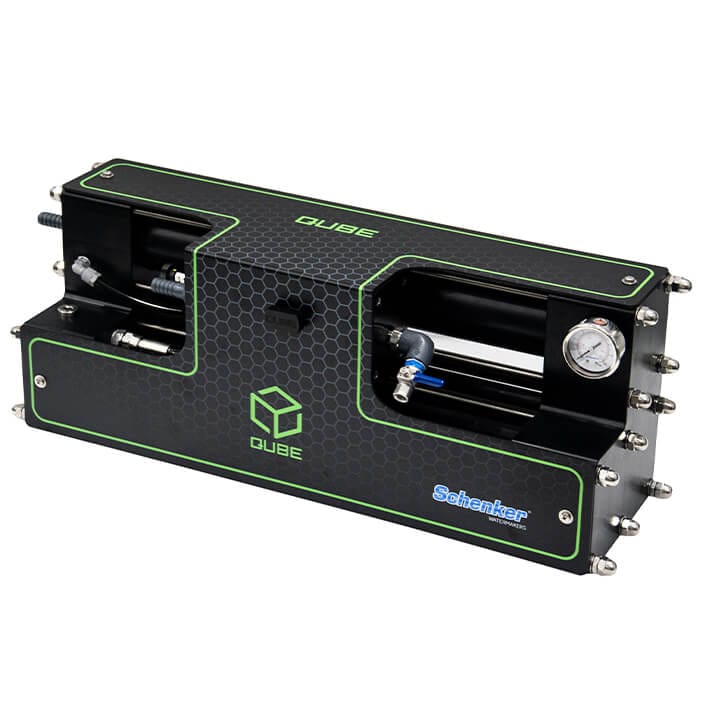

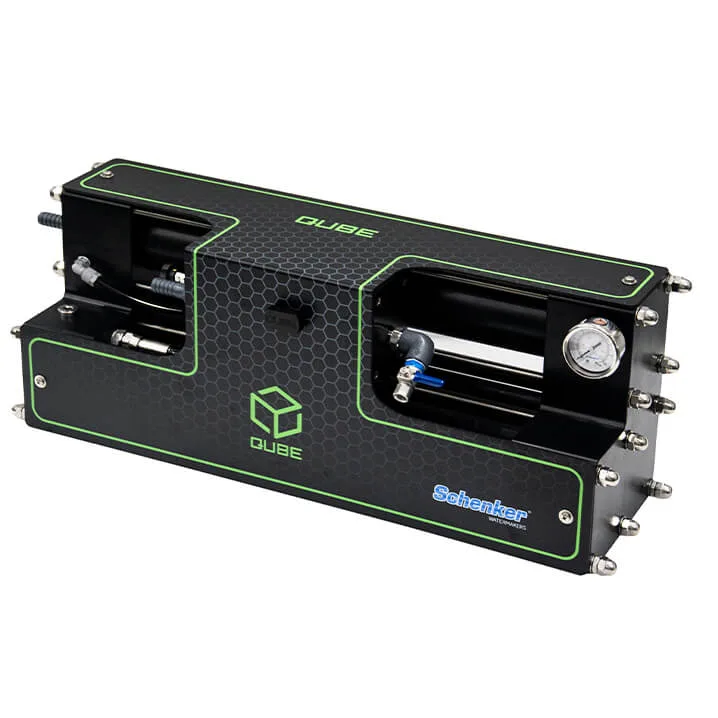

Qube 65

QUBE 65 is the ideal watermaker for a crew of 5-6 people , in 40-50 feet sailboats or 35-45 feet powerboats or catamarans. Its capacity is 65 lit /h (17 Gal/h) ; its power consumption is 300 watts. 12-24 VDC power supply.

Qube 65

Overview


  • Capacity: 65 lit/h | Gal/h 17.7
  • Power Supply: 12/24 VDC
  • Consumption: 300 watt
  • Weight: 31 Kg / 68,34Lb
  • Membranes: n° 2 2,5" x 21"

Ideal For

5/6
Persons
40/50 FEET
SAILBOAT
35/45 FEET
CATAMARAN
35/45 FEET
POWERBOAT

  • Watermaker fitted with Energy Recovery System
  • Feed pump with filter
  • Active carbon filter with electrovalve
  • Net filter
  • Filters key
  • Non return valve
  • Fresh water hose (5 mt.)
  • Remote panel
  • Installation kit (assortment of fittings and screws)
  • Owner manual

Basic Version

  • Constant pressure operation
  • Low and high pressure cutout
  • Minimum voltage cutout
  • Motor speed reduction by 50% during washing

Touch Version

  • Constant pressure operation
  • High pressure cutout
  • Minimum voltage cutout
  • No cycling cutout
  • Motor speed reduction by 50% during washing

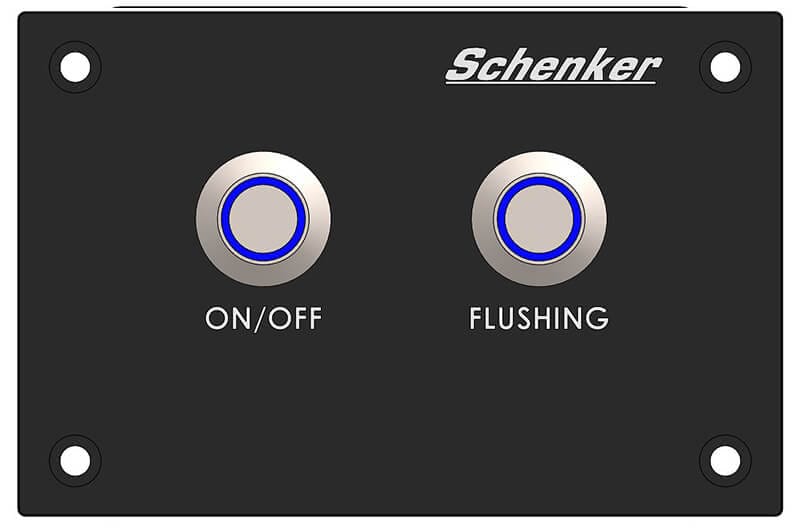

BASIC PANEL: FEATURES
  • Remote control start/stop
  • Cleaning the watermaker
  • Timer
  • Dimensions: 100x66mm
Basic Panel

Panel Basic

TOUCH PANEL: FEATURES
  • Remote control start/stop
  • Timer
  • Automatic wash
  • Intensive wash
  • Periodic wash
  • Hour counter
  • Automatic start-up
  • Assisted maintenance
  • Salinity monitoring (optional)
  • Flow meter (optional)
  • Pressure meter (optional)
  • Dimensions: 135x116mm

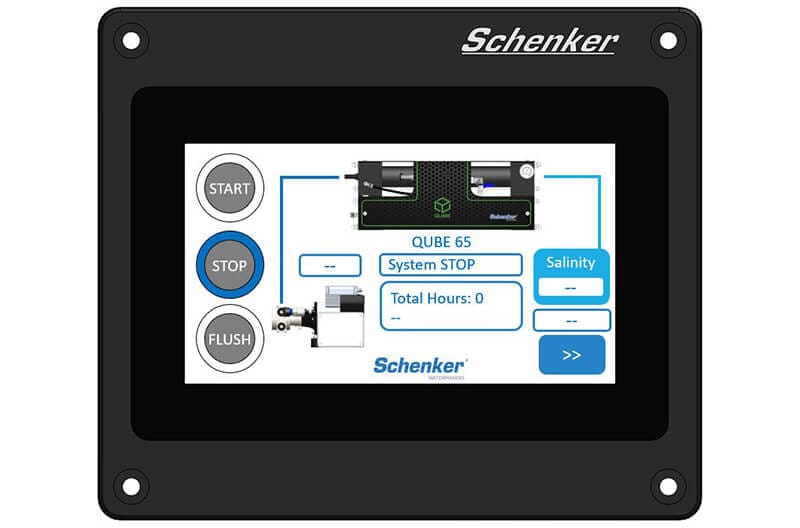

Qube 65 Touch Panel

Panel Touch

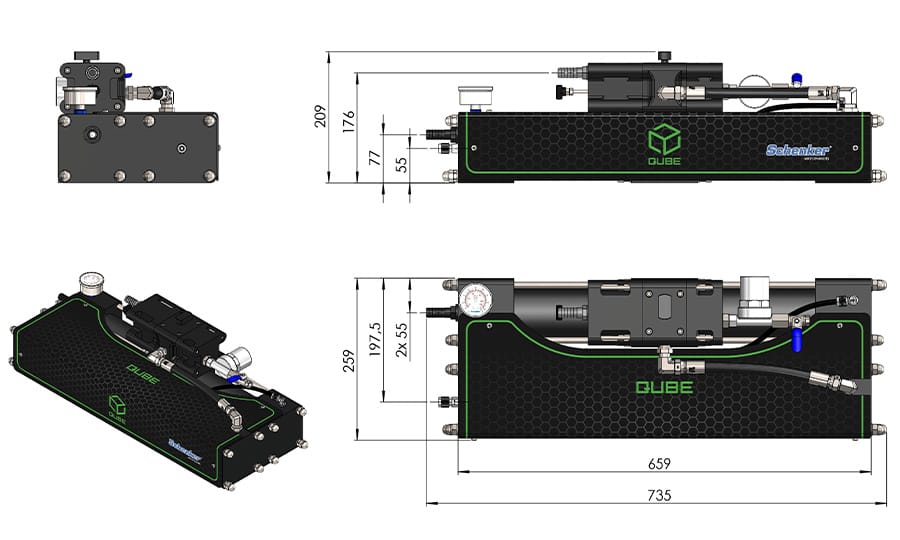

Technical drawing

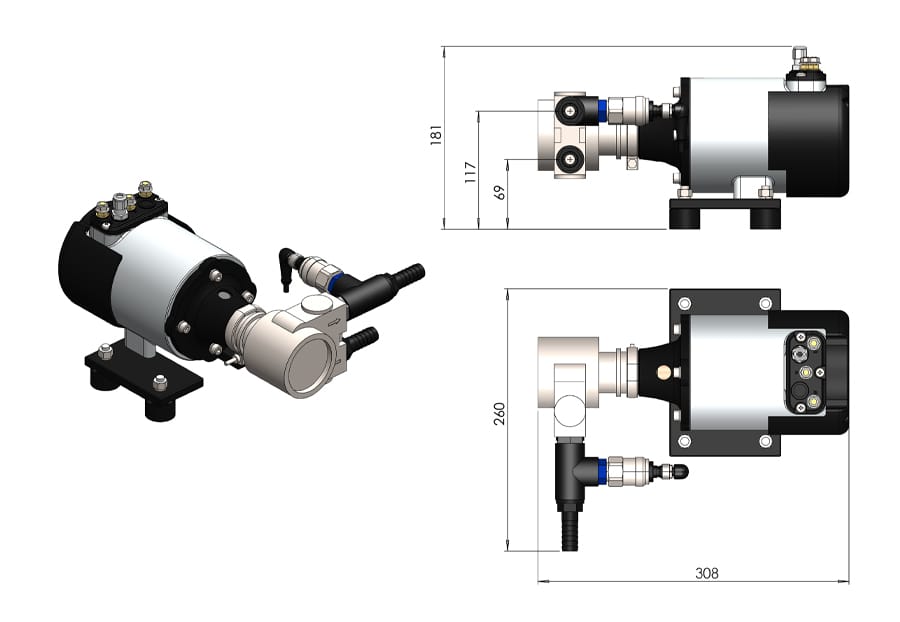

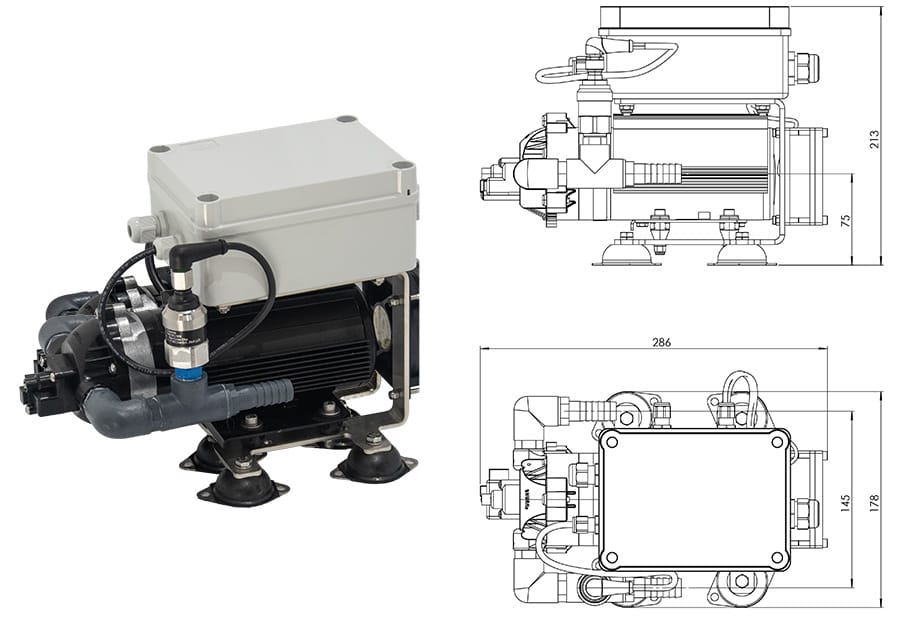

Qube Pump

Pump

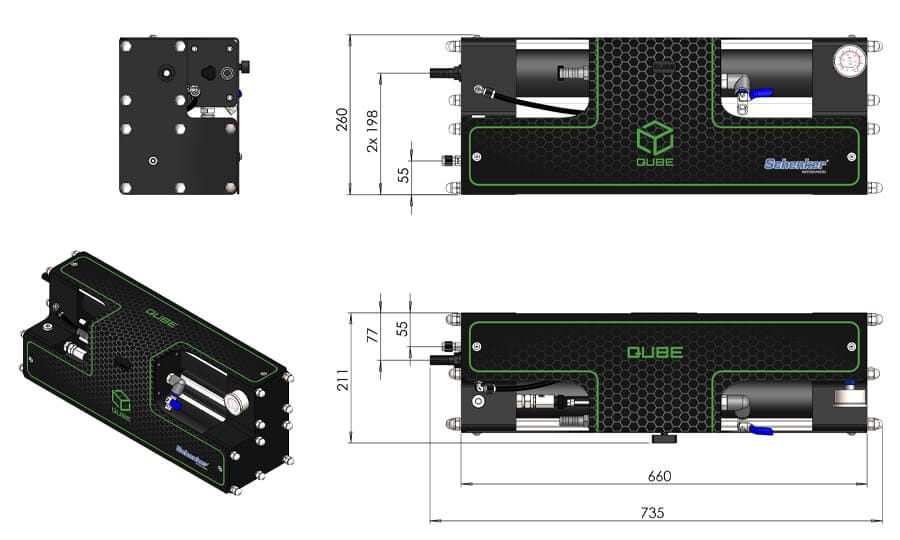

Technical drawing of the Qube 65

Qube 65 Drawings

Qube 65 – Technical drawing

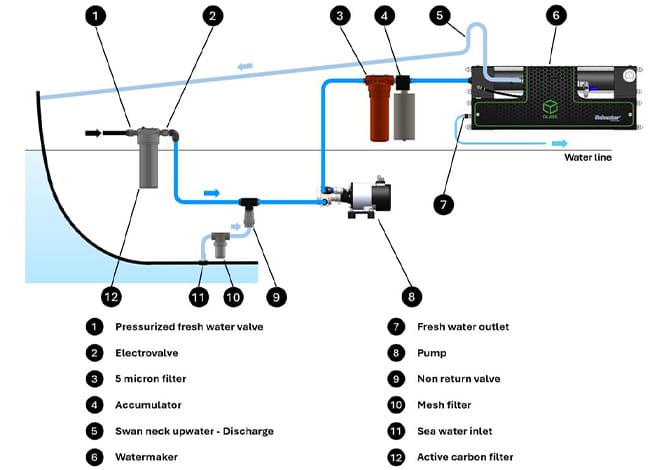

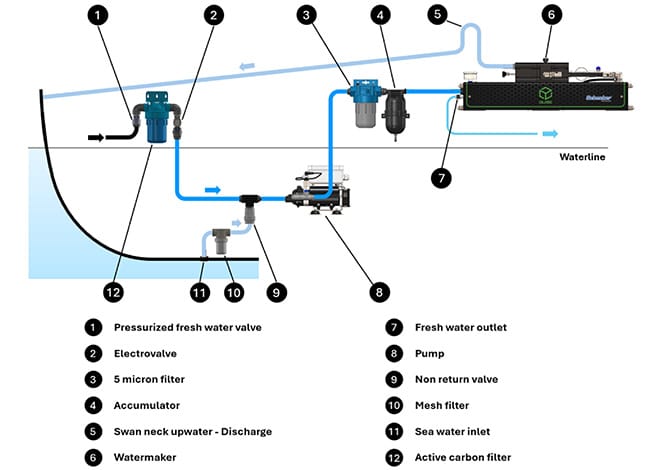

Standard installation

Qube 65 installation diagram

Qube 65 installation diagram

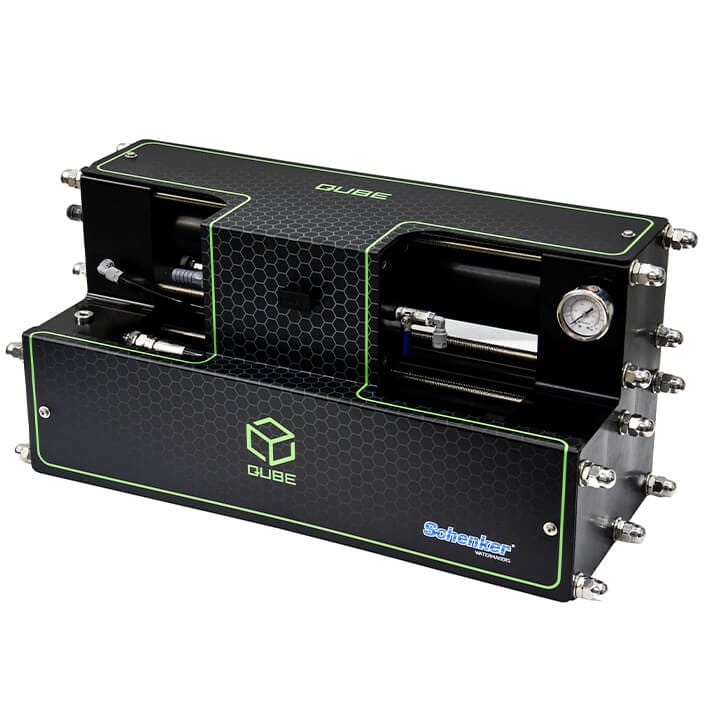

Qube 100

QUBE 100 is the ideal watermaker for a crew of 6-8 people, in 45-55 feet sailboats or 35-45 feet powerboats and catamarans. Its capacity is 100 lit/h (26.4 Gal/h); its power consumption is 400 watts. 12-24 VDC or AC power supply

Qube 100

Overview


  • Capacity: 100 lit/h | Gal/h 26.4
  • Power Supply: 12 / 24 VDC or AC
  • Consumption: 400 watt
  • Weight: 50 Kg / 110,23 Lb
  • Membranes: n° 2 4" x 21"

Ideal For

6/8
Persons
45/55 FEET
SAILBOAT
35/45 FEET
CATAMARAN
35/45 FEET
POWERBOAT

  • Watermaker fitted with Energy Recovery System
  • Feed pump with filter
  • Active carbon filter with electrovalve
  • Net filter
  • Filters key
  • Non return valve
  • Fresh water hose (5 mt.)
  • Remote panel
  • Installation kit (assortment of fittings and screws)
  • Owner manual

Basic Version

  • Constant pressure operation
  • Low and high pressure cutout
  • Minimum voltage cutout
  • Motor speed reduction by 50% during washing

Touch Version

  • Constant pressure operation
  • High pressure cutout
  • Minimum voltage cutout
  • No cycling cutout
  • Motor speed reduction by 50% during washing

BASIC PANEL: FEATURES
  • Remote control start/stop
  • Cleaning the watermaker
  • Timer
  • Dimensions: 100x66mm
Basic Panel

Panel Basic

TOUCH PANEL: FEATURES
  • Remote control start/stop
  • Timer
  • Automatic wash
  • Intensive wash
  • Periodic wash
  • Hour counter
  • Automatic start-up
  • Assisted maintenance
  • Salinity monitoring (optional)
  • Flow meter (optional)
  • Pressure meter (optional)
  • Dimensions: 135x116mm
Qube 65 Touch Panel

Panel Touch

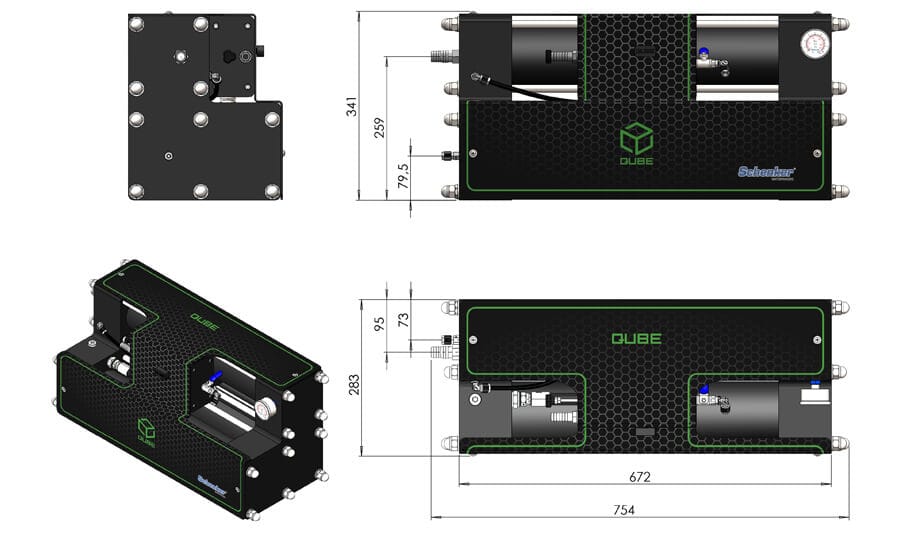

Technical drawing

Qube Pump

Pump

Technical drawing of the Qube 65

Qube 65 Drawings

Qube 65 – Technical drawing

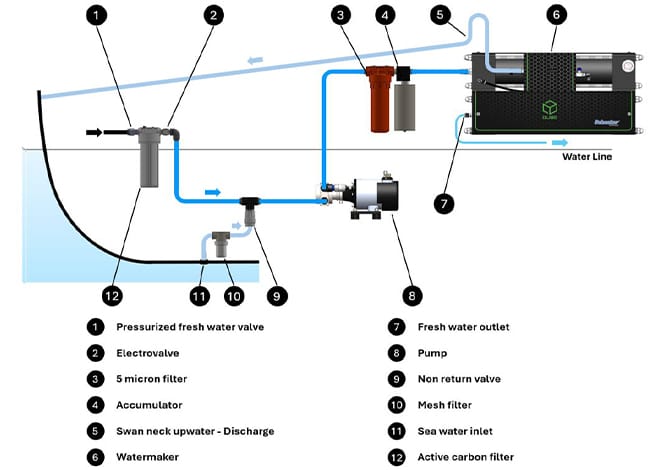

Standard installation

Qube 65 installation diagram

Qube 65 installation diagram
