ZenZen Watermakers

Quiet, small, efficient, inexpensive

Zen Models

Zen Watermakers

All components are integrated in the main manifolds and there are very few external components like fittings, pipe, valves.

These features make the Zen watermakers very compact, with a special ultra-flat design. Zen in fact is designed to fit  into tight spaces and can be installed in every positions, horizontally as well as vertically. Not much bigger than a briefcase!

The Zen are fitted with new generation Energy Recovery Systems that reduce the electric consumption to a minimum.

Zen technology is patented.

Zen 30
Zen 50
Zen 100
Zen 150
Zen twin-200
Zen twin-300

Zen 30

Zen 30 is the Schenker watermaker ideal for a crew of 1-4 people, in 30-40 feet sailboat or in 25-35 feet powerboat or catamaran. The capacity is 30 lit/h (7.9 Gal/h); consumption is just 110 watt. 12-24 VDC power supply.

Zen 30

Overview


  • Capacity: 30 lit/h | Gal/h 7.9
  • Power Supply: 12 / 24 VDC
  • Consumption: 110 watt
  • Weight: 22 Kg - 48,50 Lb
  • Membranes: n°1 2,5" x 21"

Ideal For

1/4
Persons
OCEAN ROWING BOATS
INFLATABLE
BOAT
30/40 FEET
SAILBOAT
25/35 FEET
CATAMARAN
25/35 FEET
POWERBOAT

Product Details

Zen 30

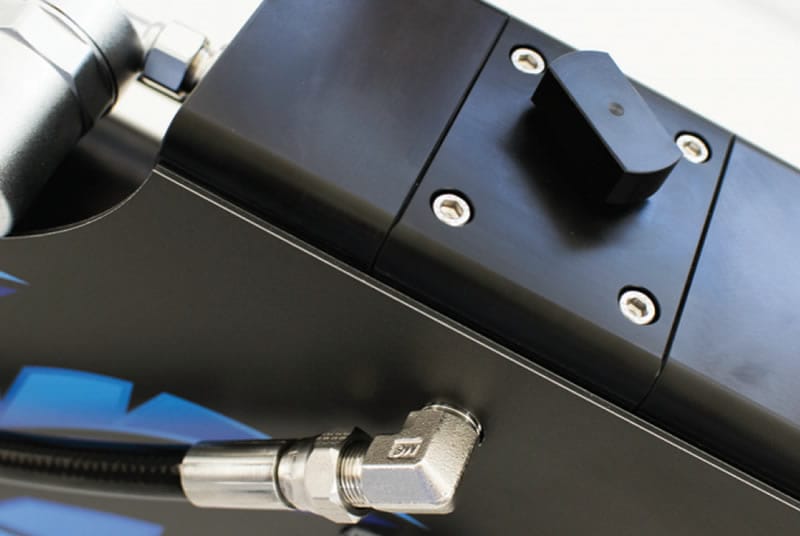

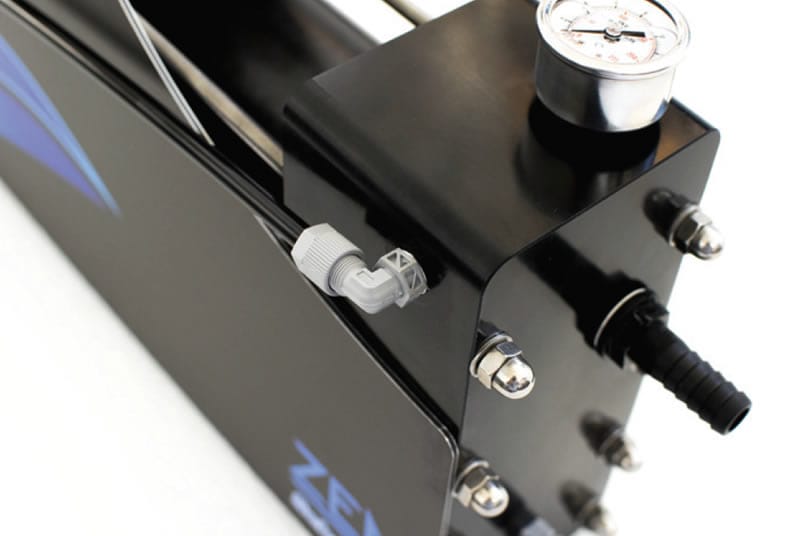

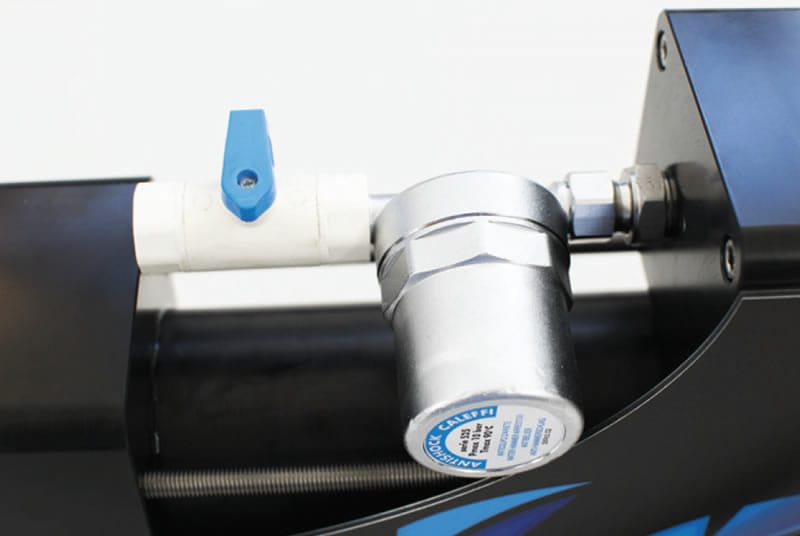

Zen 30 Details
Zen 30 Details
Zen 30 Details
Zen 30 30

  • Watermaker fitted with Energy Recovery System
  • Feed pump with filter
  • Active carbon filter with electrovalve
  • Net filter
  • Filters key
  • Non return valve
  • Fresh water hose (5 mt.)
  • Remote panel
  • Installation kit (assortment of fittings and screws)
  • Owner manual

  • Automatic pressure regulation
  • High pressure block
  • Low voltage block

  • Remote start/stop
  • Watermaker flushing
  • Timer
  • Dimensions: 100x66mm
New Basic Panel

New Basic Panel

Choose a pump from the list below based on the space on the boat and the models available for the selected watermaker:

Drawings

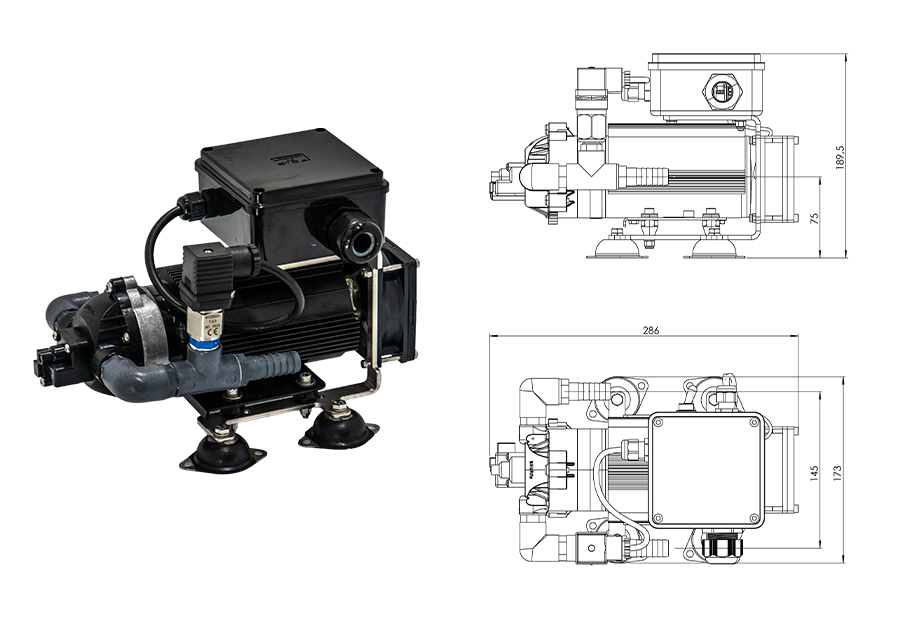

30 l/h - Gal/h 7.8 Pump

30 l/h – Gal/h 7.8 Pump

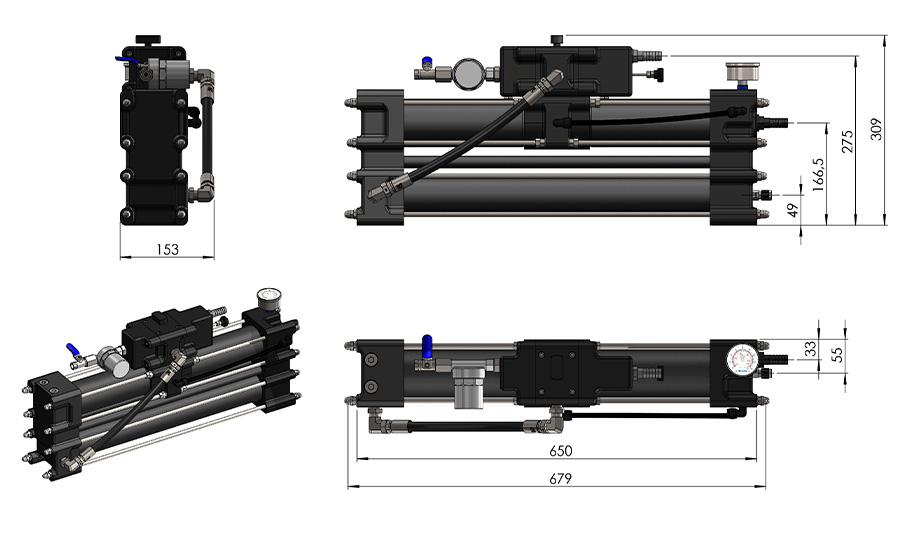

Drawings

Zen 30 Drawings

Zen 30 Drawings

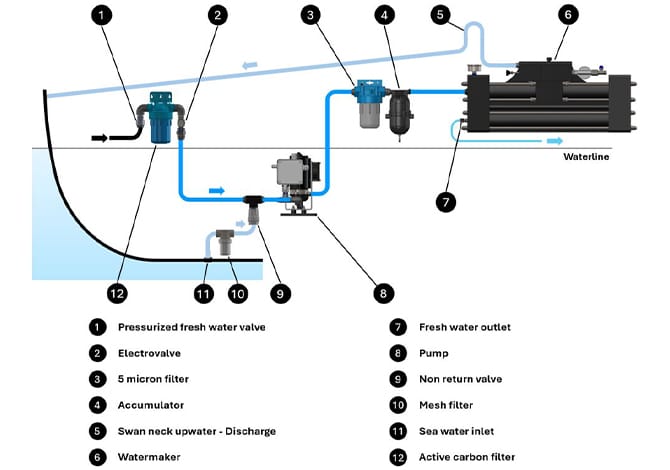

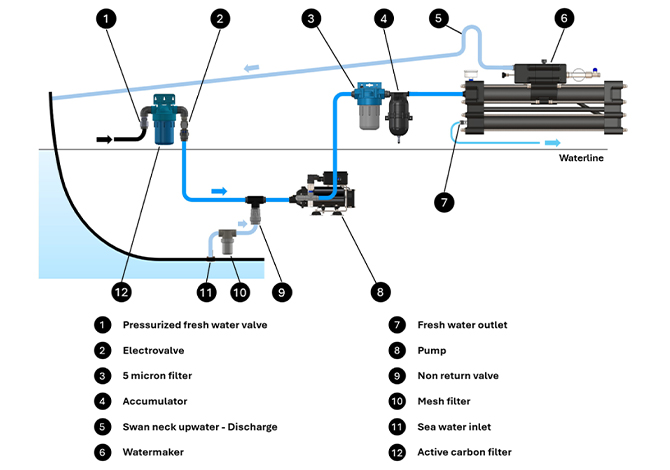

TYPICAL INSTALLATION

Zen Installation Scheme

Zen 30 Installation Scheme

Zen 50

Zen 50 is the watermaker ideal for a crew of 4-6 people, in 35-45 feet sailboat or in 30-40 feet powerboat or catamaran. The capacity is 50 lit/h (13.2 Gal/h); consumption is 240 watt. 12-24 VDC power supply.

Zen 50

Overview


  • Capacity: 50 lit/h | Gal/h 13.2
  • Power Supply: 12 / 24 VDC
  • Consumption: 240 watt
  • Weight: 31 Kg - 68,34 Lb
  • Membranes: n° 2 2,5" x 21"

Ideal For

4/6
Persons
35/45 FEET
SAILBOAT
30/40 FEET
CATAMARAN
30/40 FEET
POWERBOAT

Product Details

Zen 50

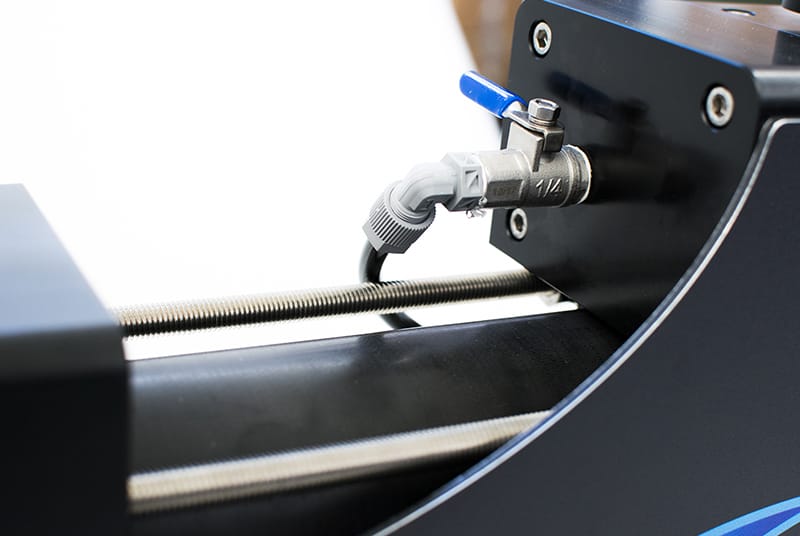

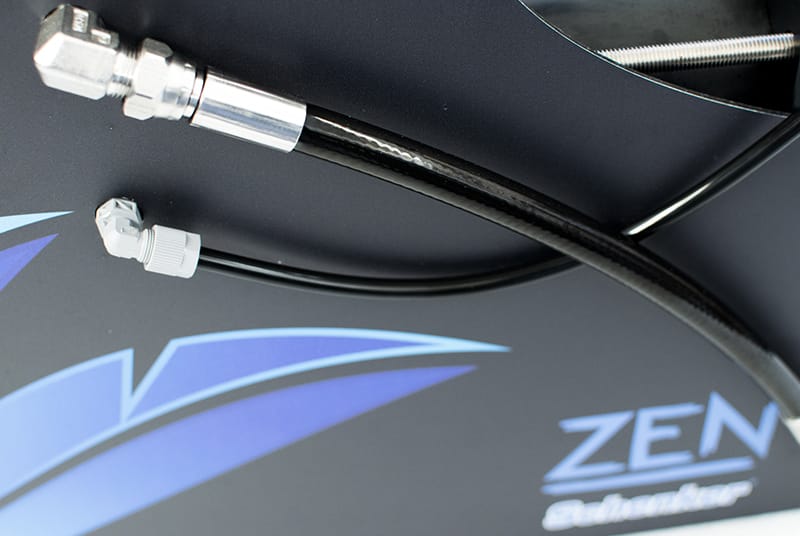

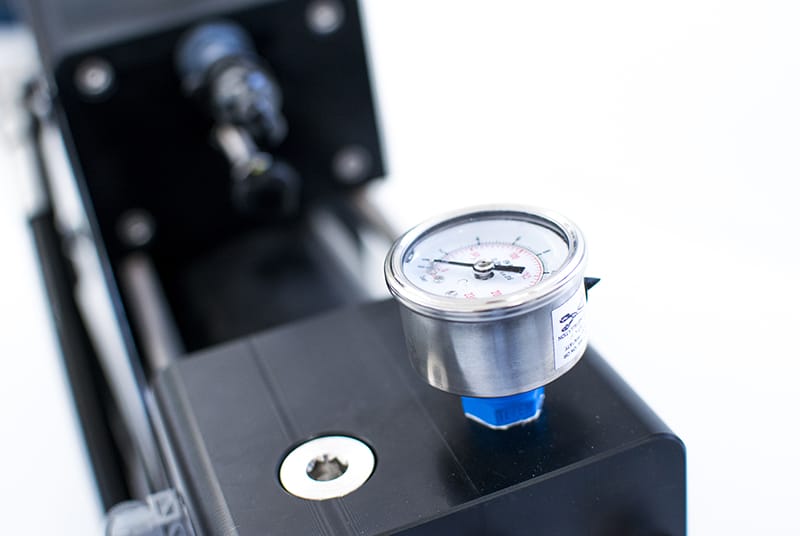

Zen 50 Details
Zen 50 Details
Zen 50 Details
Zen 50 50

  • Watermaker fitted with Energy Recovery System
  • Feed pump with filter
  • Active carbon filter with electrovalve
  • Net filter
  • Filters key
  • Non return valve
  • Fresh water hose (5 mt.)
  • Remote panel
  • Installation kit (assortment of fittings and screws)
  • Owner manual

  • Automatic pressure regulation
  • High pressure block
  • Low voltage block

  • Remote start/stop
  • Watermaker flushing
  • Timer
  • Dimensions: 100x66mm
New Basic Panel

New Basic Panel

Drawings

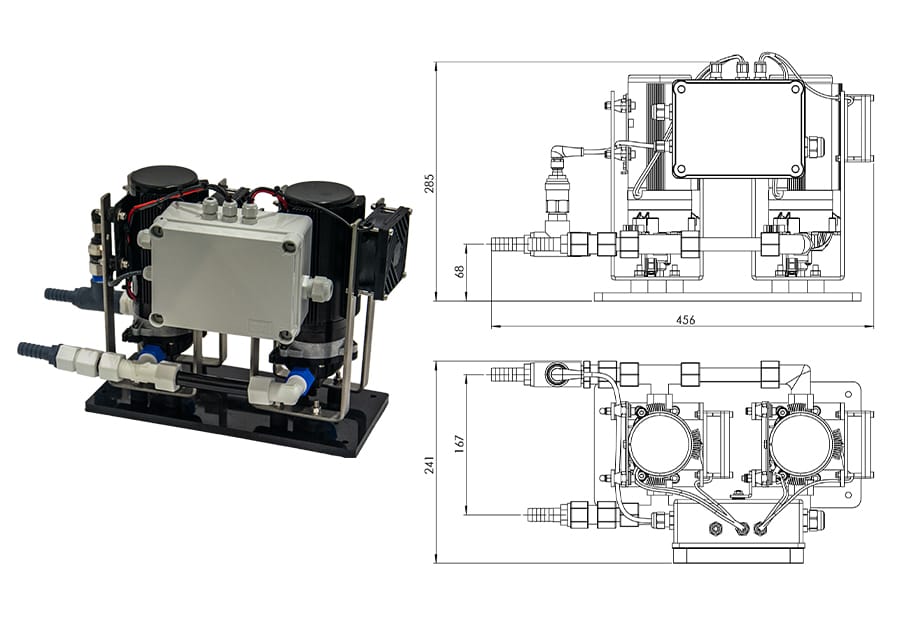

50/60 Pump

50-60 l/h Pump with external filter

DRAWINGS

Zen 50 Drawings

Zen 50 Drawings

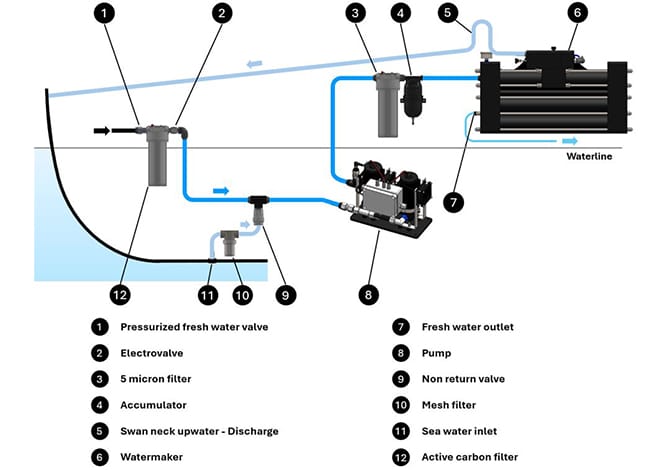

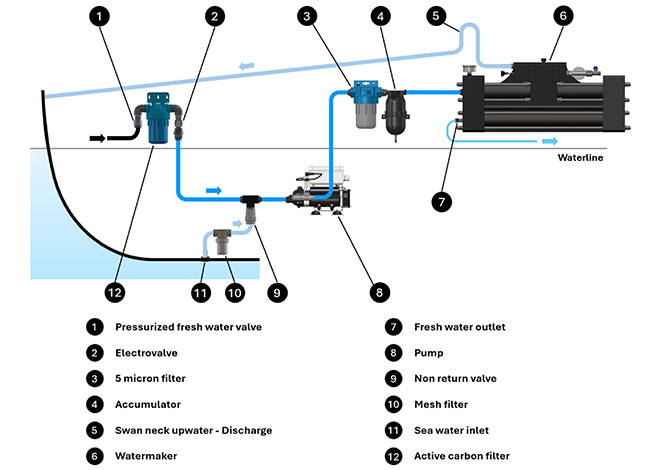

TYPICAL INSTALLATION

Zen Installation Scheme

Zen 50 Installation Scheme

Zen 100

Zen 100 is the Schenker watermaker ideal for a crew of 6-8 people, in 45-55 feet sailboat or in 35-45 feet powerboat or catamaran. The capacity is 100 lit/h (26.4 Gal/h); consumption is 400 watt. 12-24 VDC or AC power supply.

Zen 100

Overview


  • Capacity: 100 lit/h | Gal/h 26.4
  • Power Supply: 12 / 24 VDC or AC
  • Consumption: 400 watt
  • Weight: 53 Kg - 116,85 Lb
  • Membranes: n° 2 4" x 21"

Ideal For

6/8
Persons
45/55 FEET
SAILBOAT
35/45 FEET
CATAMARAN
35/45 FEET
POWERBOAT

Product Details

Zen 100

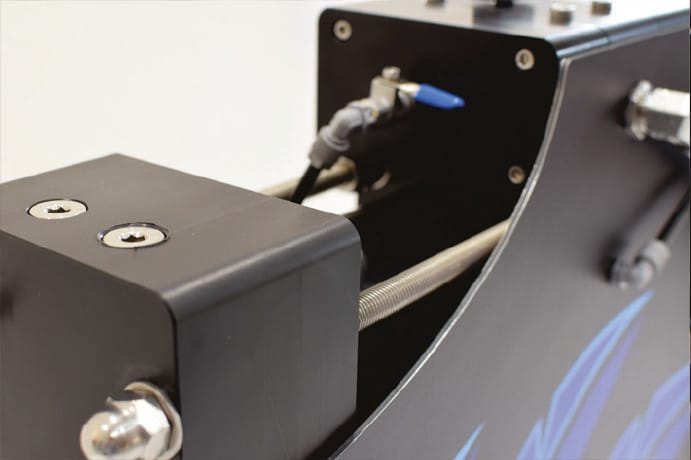

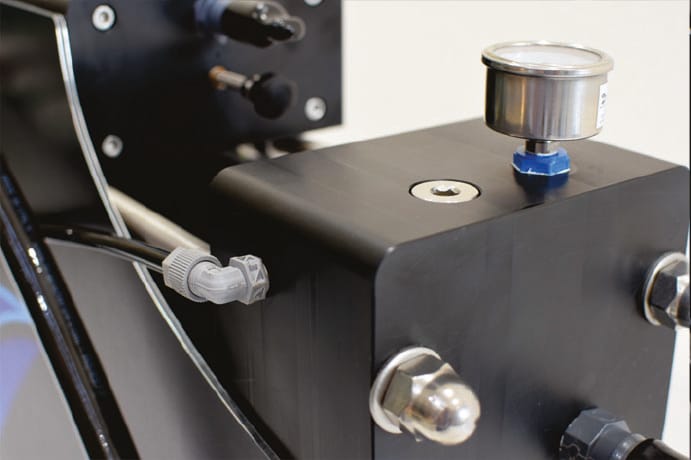

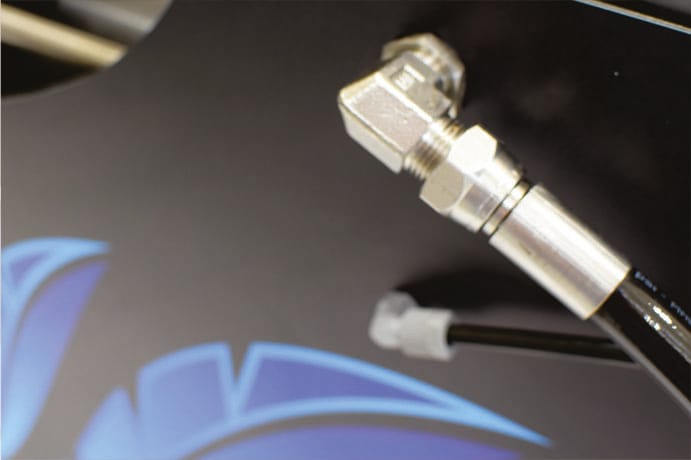

Zen 100 Details
Zen 100 Details
Zen 100 Details
Zen 100 100

  • Watermaker fitted with Energy Recovery System
  • Feed pump with filter
  • Active carbon filter with electrovalve
  • Net filter
  • Filters key
  • Non return valve
  • Fresh water hose (5 mt.)
  • Remote panel
  • Installation kit (assortment of fittings and screws)
  • Owner manual

Basic Version

  • Automatic pressure regulation
  • High pressure block
  • Low voltage block

Touch Version

  • Automatic pressure regulation
  • High pressure block
  • Low pressure block
  • No cycling block
  • Low voltage block

CHOOSE YOUR PANEL FROM BASIC AND TOUCH VERSION

BASIC PANEL FEATURES
  • Remote start/stop
  • Watermaker flushing
  • Timer
  • Dimensions: 100x66mm
New Basic Panel

New Basic Panel

TOUCH PANEL FEATURES
  • Remote Start/Stop
  • Timer
  • Automatic flushing
  • Intensive flushing
  • Periodic flushing
  • Hours counter
  • Automatic start up
  • Assisted maintenance
  • Salinity monitoring (optional)
  • Flow meter (optional)
  • Pressure meter (optional)
  • Dimensions: 135x116mm
New Touch Panel

New Touch Panel

Drawings

80/100/150 Pump

80-100-150 l/h Pump

DRAWINGS

Zen 100 Drawings

Zen 100 Drawings

TYPICAL INSTALLATION

Zen Installation Scheme

Zen 100 Installation Scheme

Zen 150

Zen 150 is the watermaker ideal for a crew of 8-10 people, in 50-60 feet sailboat or in 40-50 feet powerboat or catamaran. The capacity is 150 lit/h (39.6 Gal/h); consumption is 600 watt. 24 VDC or AC power supply.

Zen 150

Overview


  • Capacity: 150 lit/h | Gal/h 39.6
  • Power Supply: 24 VDC or AC
  • Consumption: 600 watt
  • Weight: 62 Kg - 136,69 Lb
  • Membranes: n° 2 4" x 21"

Ideal For

8/10
Persons
50/60 FEET
SAILBOAT
40/50 FEET
CATAMARAN
40/50 FEET
POWERBOAT

Product Details

Zen 150
Zen 100 Details
Zen 100 Details
Zen 100 Details
Zen 150 150

  • Watermaker fitted with Energy Recovery System
  • Feed pump with filter
  • Active carbon filter with electrovalve
  • Net filter
  • Filters key
  • Non return valve
  • Fresh water hose (5 mt.)
  • Remote panel
  • Installation kit (assortment of fittings and screws)
  • Owner manual

Basic Version

  • Automatic pressure regulation
  • High pressure block
  • Low voltage block

Touch Version

  • Automatic pressure regulation
  • High pressure block
  • Low pressure block
  • No cycling block
  • Low voltage block

CHOOSE YOUR PANEL FROM BASIC AND TOUCH VERSION

BASIC PANEL FEATURES
  • Remote start/stop
  • Watermaker flushing
  • Timer
  • Dimensions: 100x66mm
New Basic Panel

New Basic Panel

TOUCH PANEL FEATURES
  • Remote Start/Stop
  • Timer
  • Automatic flushing
  • Intensive flushing
  • Periodic flushing
  • Hours counter
  • Automatic start up
  • Assisted maintenance
  • Salinity monitoring (optional)
  • Flow meter (optional)
  • Pressure meter (optional)
  • Dimensions: 135x116mm
New Touch Panel

New Touch Panel

Drawings

150 l/h Pump

150 l/h Pump

DRAWINGS

Zen 150 Drawings

Zen 150 Drawings

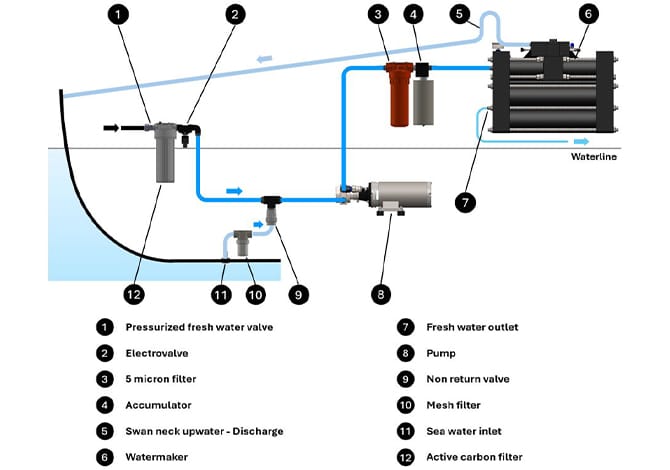

TYPICAL INSTALLATION

Zen Installation Scheme

Zen 150 Installation Scheme

Zen Twin 200

The ZEN Twin is based on two independent watermakers controlled by a single remote touch panel, which offers the possibility to operate both or just one machine. The two units can also be powered with different power supplies. Maximum flexibility and redundancy.

Zen Twin 200

Overview


  • Capacity: 200 lit/h | Gal/h 53
  • Power Supply: 12-24 VDC or AC
  • Consumption: 800 watt
  • Weight: 102 Kg - 224,87 Lb
  • Membranes: n° 2 4" x 21"

Ideal For

10/12
Persons
55/65 FEET
SAILBOAT
50/60 FEET
CATAMARAN
50/60 FEET
POWERBOAT

Product Details

Zen Twin 200

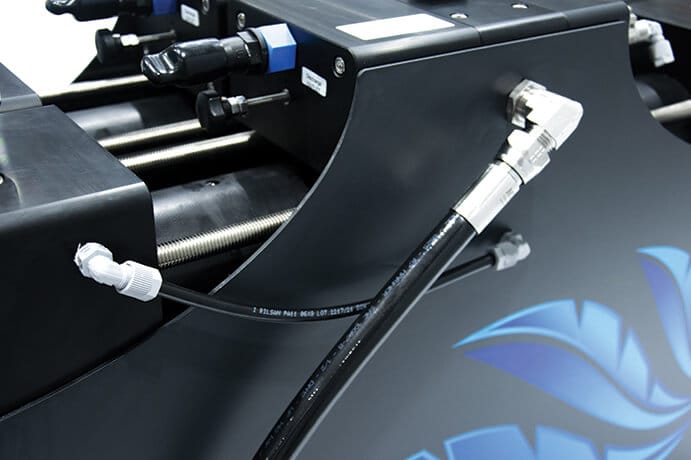

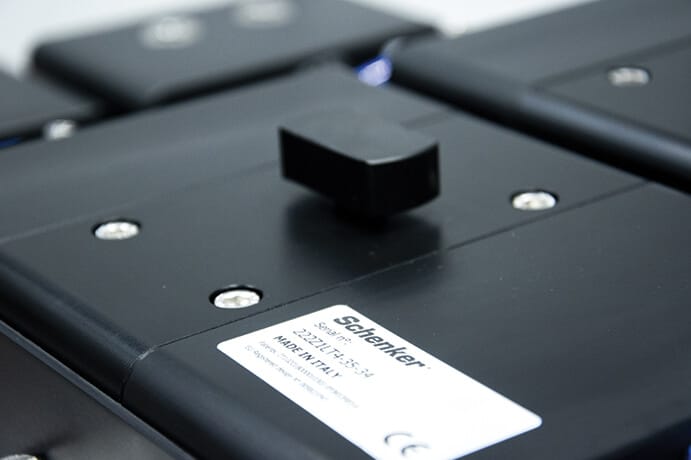

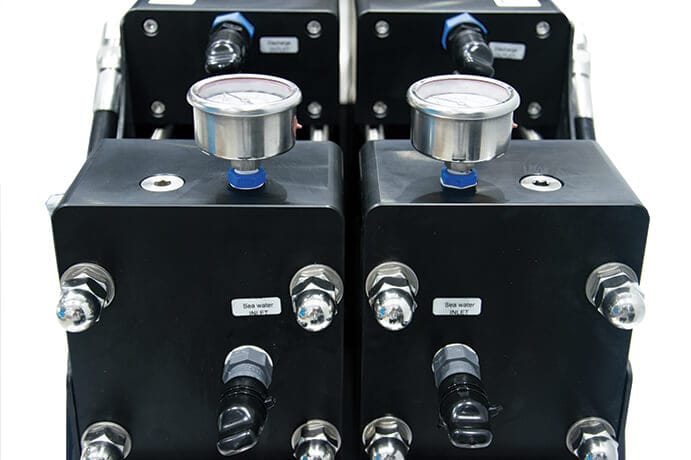

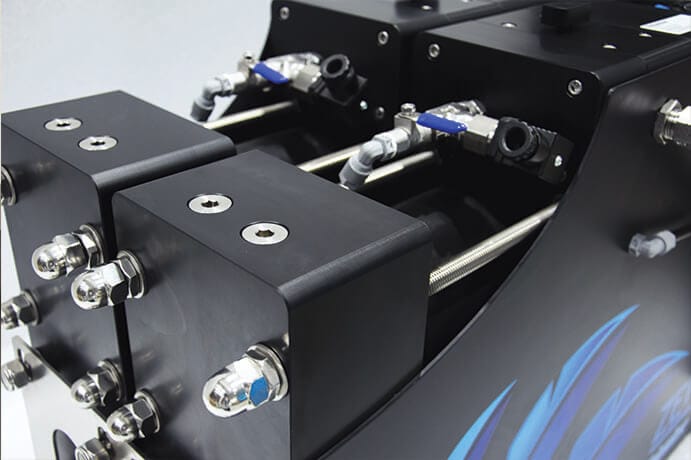

Zen Twin 200 Details
Zen Twin 200 Details
Zen Twin 200 Details
Zen Twin 200 Details
Zen Twin 200 200

  • Double watermaker fitted with Energy Recovery System
  • Double pump with filter
  • Double active carbon filter with electrovalve
  • Filters key
  • Double non return valve
  • Fresh water hose (20 mt.)
  • Remote panel
  • Installation kit (assortment of fittings and screws)
  • Owner manual

  • Automatic pressure regulation
  • High pressure block
  • Low pressure block
  • No cycling block
  • Low voltage block

TOUCH PANEL FEATURES
  • Remote Start/Stop
  • Timer
  • Automatic flushing
  • Intensive flushing
  • Periodic flushing
  • Hours counter
  • Automatic start up
  • Assisted maintenance
  • Salinity monitoring
  • Flow meter
  • Pressure meter
  • Dimensions: 135x116mm
New Touch Panel

New Touch Panel

Drawings

2x 100 l/h Pumps

2x 100 l/h Pumps

DRAWINGS

Zen Twin 200 Drawings

Zen Twin 200 Drawings

TYPICAL INSTALLATION

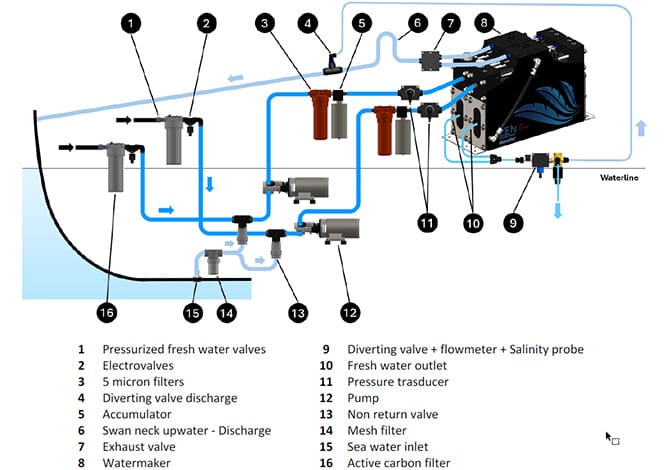

Zen Twin 200 Installation Scheme

Zen Twin 200 Installation Scheme

Zen Twin 300

The ZEN Twin is based on two independent watermakers controlled by a single remote touch panel, which offers the possibility to operate both or just one machine. The two units can also be powered with different power supplies. Maximum flexibility and redundancy.

Zen Twin 300

Overview


  • Capacity: 300 lit/h | Gal/h 79
  • Power Supply: 24 VDC or AC
  • Consumption: 1,2 kWatt
  • Weight: 120 Kg – 264,56 Lb
  • Membranes: n° 2 4" x 21"

Ideal For

12/14
Persons
60/70 FEET
SAILBOAT
55/65 FEET
CATAMARAN
55/65 FEET
POWERBOAT

Product Details

Zen Twin 300

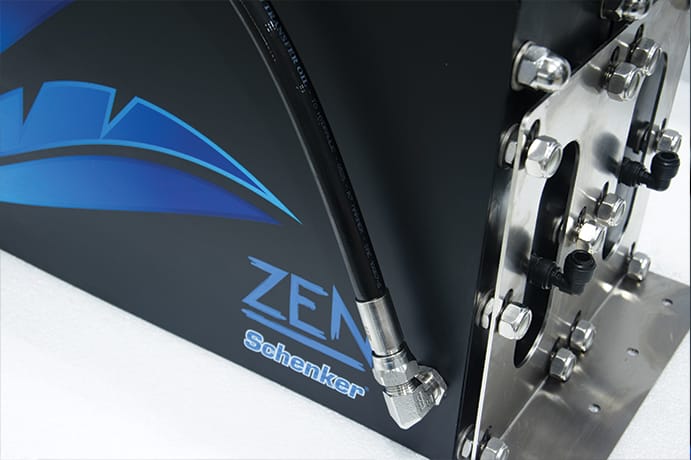

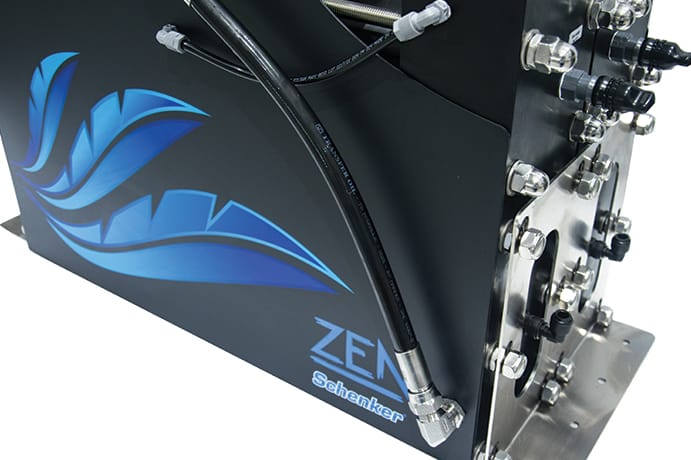

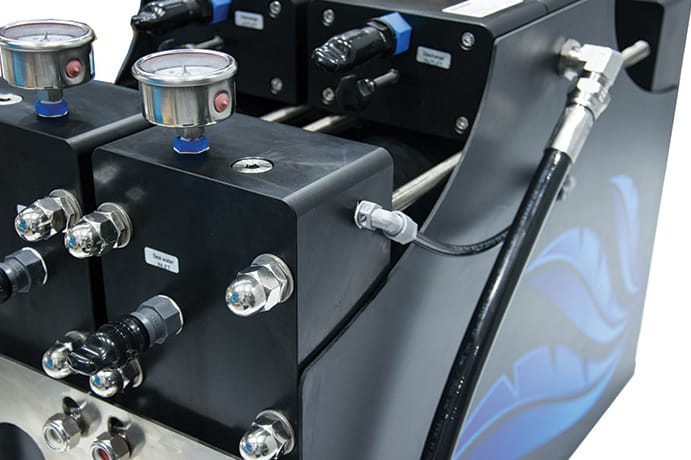

Zen Twin 300 Details
Zen Twin 300 Details
Zen Twin 300 Details
Zen Twin 300 Details
Zen Twin 300 300

  • Double watermaker fitted with Energy Recovery System
  • Double pump with filter
  • Double active carbon filter with electrovalve
  • Filters key
  • Double non return valve
  • Fresh water hose (20 mt.)
  • Remote panel
  • Installation kit (assortment of fittings and screws)
  • Owner manual

  • Automatic pressure regulation
  • High pressure block
  • Low pressure block
  • No cycling block
  • Low voltage block

TOUCH PANEL FEATURES
  • Remote Start/Stop
  • Timer
  • Automatic flushing
  • Intensive flushing
  • Periodic flushing
  • Hours counter
  • Automatic start up
  • Assisted maintenance
  • Salinity monitoring
  • Flow meter
  • Pressure meter
  • Dimensions: 135x116mm
New Touch Panel

New Touch Panel

Drawings

2x 150 l/h Pumps

2x 150 l/h Pumps

DRAWINGS

Zen Twin 300 Drawings

Zen Twin 300 Drawings

TYPICAL INSTALLATION

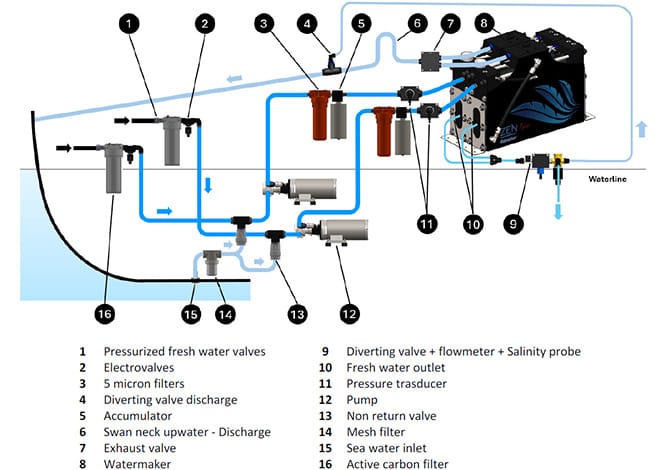

Zen Twin 300 Installation Scheme

Zen Twin 300 Installation Scheme
